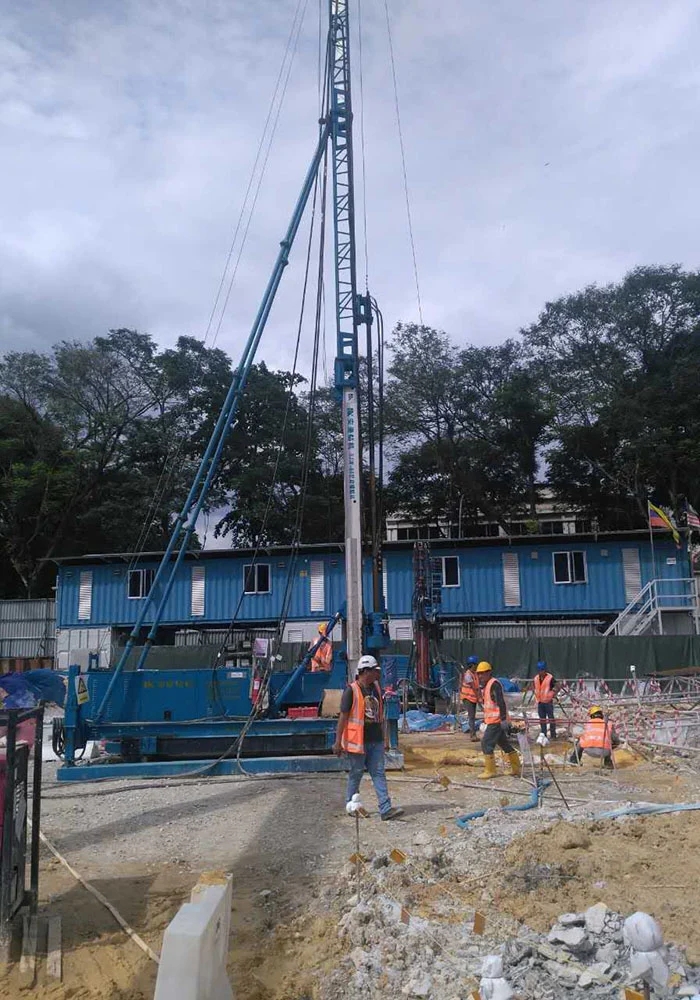

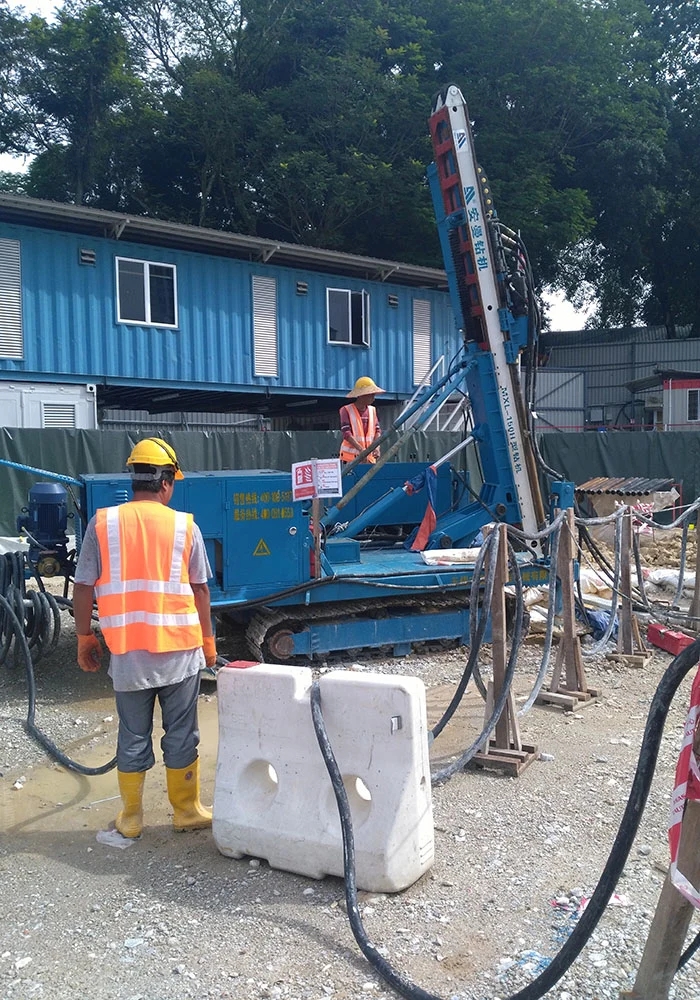

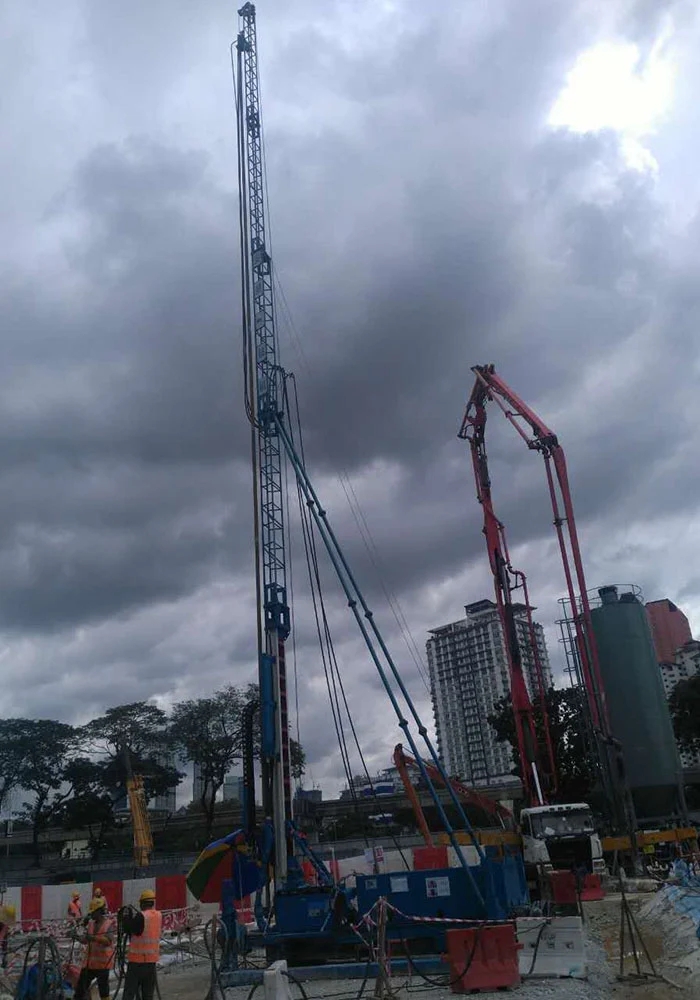

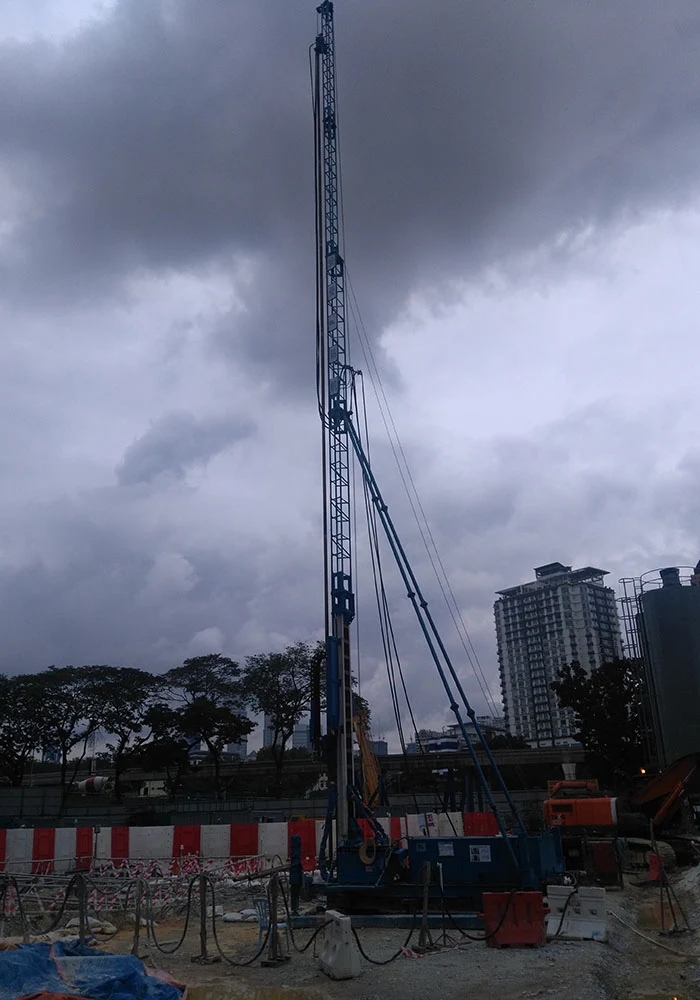

Product model: SJW-60,MXL-150H
Customer: China Railway (Malaysia) Geotechnical Engineering Co., Ltd.
Service location: Malaysia TITIWANGSA Subway
Technology: Jet Grouting, grouting reinforcement (lifting speed: 13cm, rotary speed 15 rpm),
High-pressure pump pressure: 30Mpa,
Slurry pressure:3Mpa.
Air pressure:0.78Mpa,
Water/cement ratio 1:1.6. Depth: 27.5 m.
Stratum situation: Clay, silt, sand, gravel, gravel compaction, rock formations.
SJW-60 drilling rig, can avoid hole plugging from gravel stone layer, achieve 500mm of pile diameter
