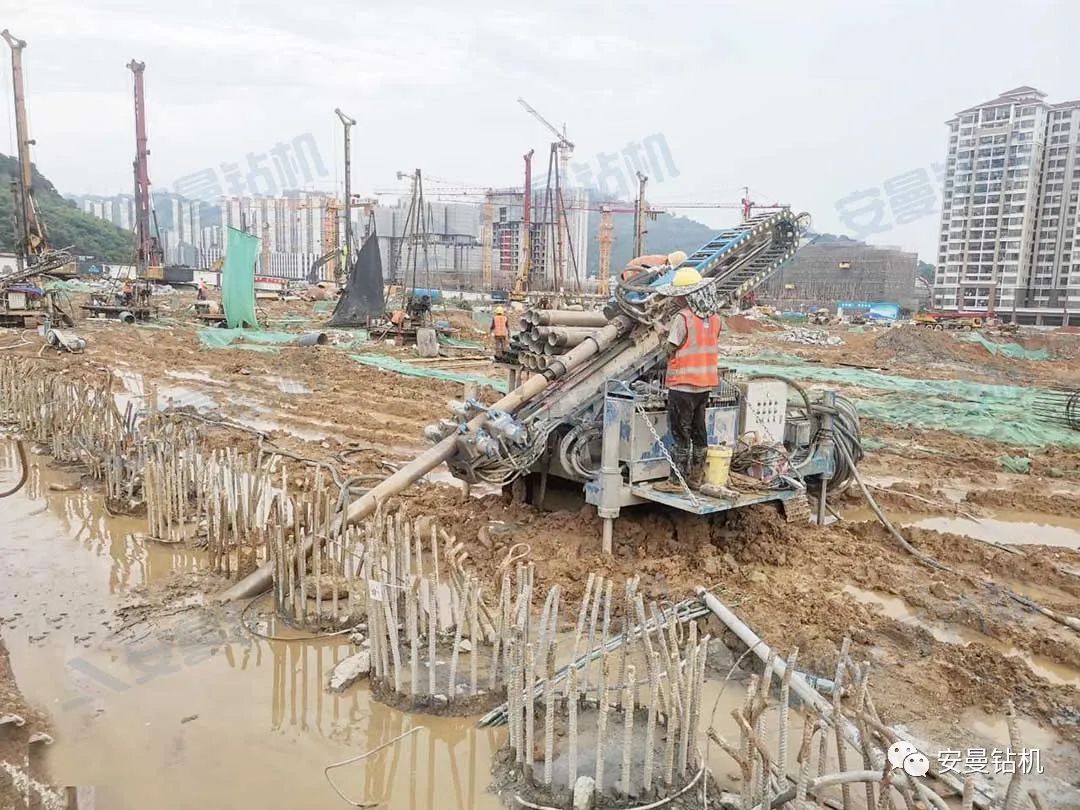

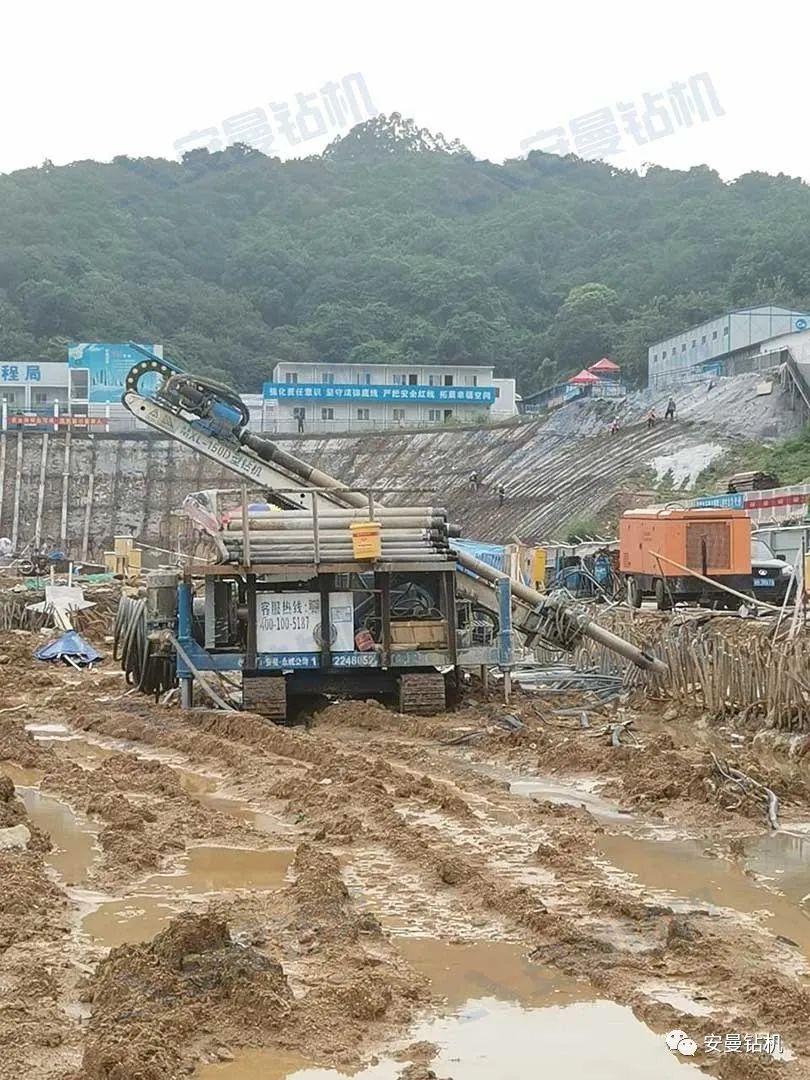

【Construction case】MXL-150D anchor drilling rig

Stratum situation

Location (province): Guangdong

Location (city): Guangzhou

Drilling rig model: MXL-150D anchor rig

Drill tool configuration:146 casing + 76 drill pipe

Process type: foundation pit inclined anchor

Construction technology: ordinary anchor cable

Straticondition: 0-20 m mud layer,

The 20-32 m sand layer,

32-35 m medium-weathered rock formation

Construction Angle (°): 25

Pore size (mm): 150

Hole depth (m): 35

Construction efficiency (min): 70

Pure drilling time (min): 40

Pure removal removal drill time (min): 20

Construction technology

1、When the rig moves the machine to the hole position, adjust the Angle, support the leg to the ground to ensure that the drilling process does not shift;

2、Install the casing and casing drill bit, start the water pump, drill to the medium weathered rock surface;

3、Install the drill pipe, submersible hole impactor and hammer head, drill to the required hole depth, remove and pull out the drill pipe;

4、Put the made anchor cable into the casing;

5、First, the pipe grouting is carried out. When the hole is completely returned to the slurry, the grouting is stopped. After the slurry is initial, the second grouting is carried out.
