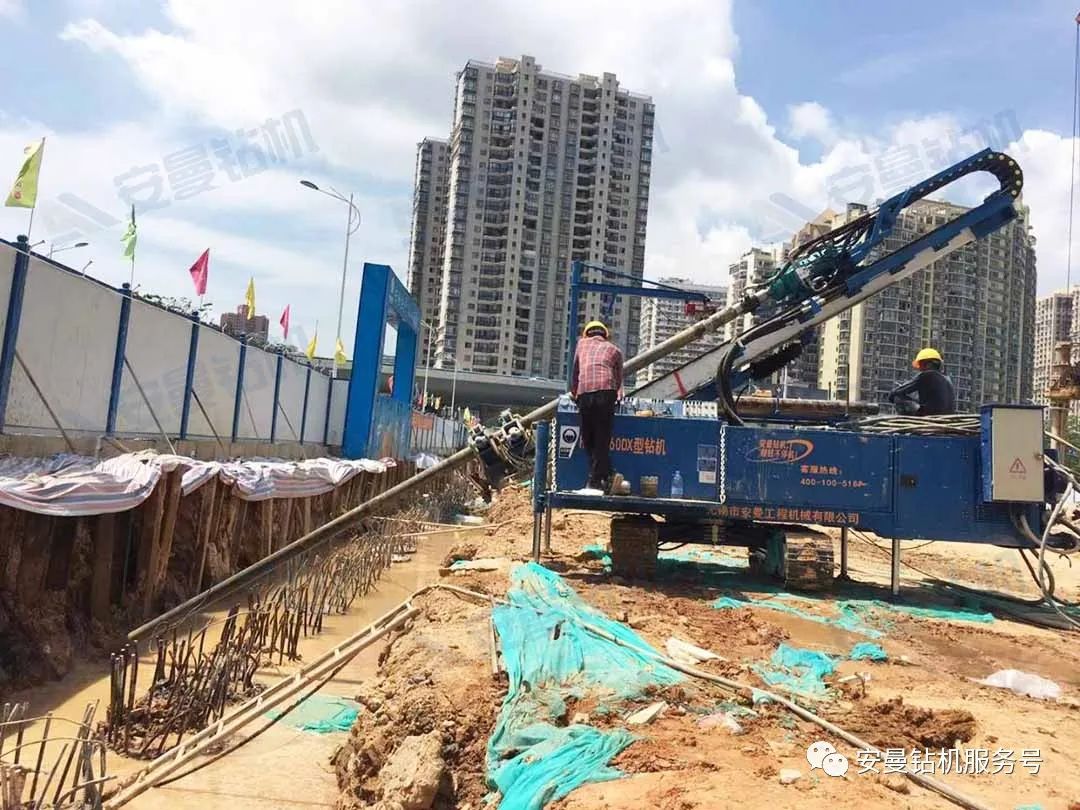

【Construction case】HDL-160DX top drive drilling rig

Formation situation

Location (province): Fujian province

Location (city): Xiamen

Model: HDL-160DX top drive rig

Drill tool configuration: 146 casing + 73 drill pipe

Process type: foundation pit inclined anchor

Construction technology: recyclable anchor cable

Stratigraphy: 1-6 meters of earth and stone backfill, 7-31 meters of clay layer

Construction Angle(°): 25

Pore size (mm): 150

Hole depth (m): 31

Construction efficiency (min): 45

Pure drilling time (min): 35

Pure removal removal drill time (min): 10

Construction technology

Background configuration: 5.5 kw sewage pump, 15 kw booster pump

1、The drilling rig moves the machine to the hole position, adjust the Angle, and support the legs to the ground to ensure that there is no displacement in the drilling process;

2、Install the casing and casing drill bit, return the mud from the drill bit from the hole through the casing pipe, and drill with water to the design requirements;

3、Before injecting a certain amount of cement slurry into the casing before the anchor cable, and then put the recyclable anchor cable into the casing (to ensure the pile effect);

4、First, grouting in the pipe, connect the made slurry through the grouting pump to a grouting pipe for grouting the bottom of the hole. When the hole is completely back to the slurry, stop the grouting;

5、Pull out the casing and move the machine to the next hole;

6、After the cement slurry in the hole is initially condensed, the second grouting is carried out.

 —— Anman drilling rig sales service: Lu Xinke

Product presentation

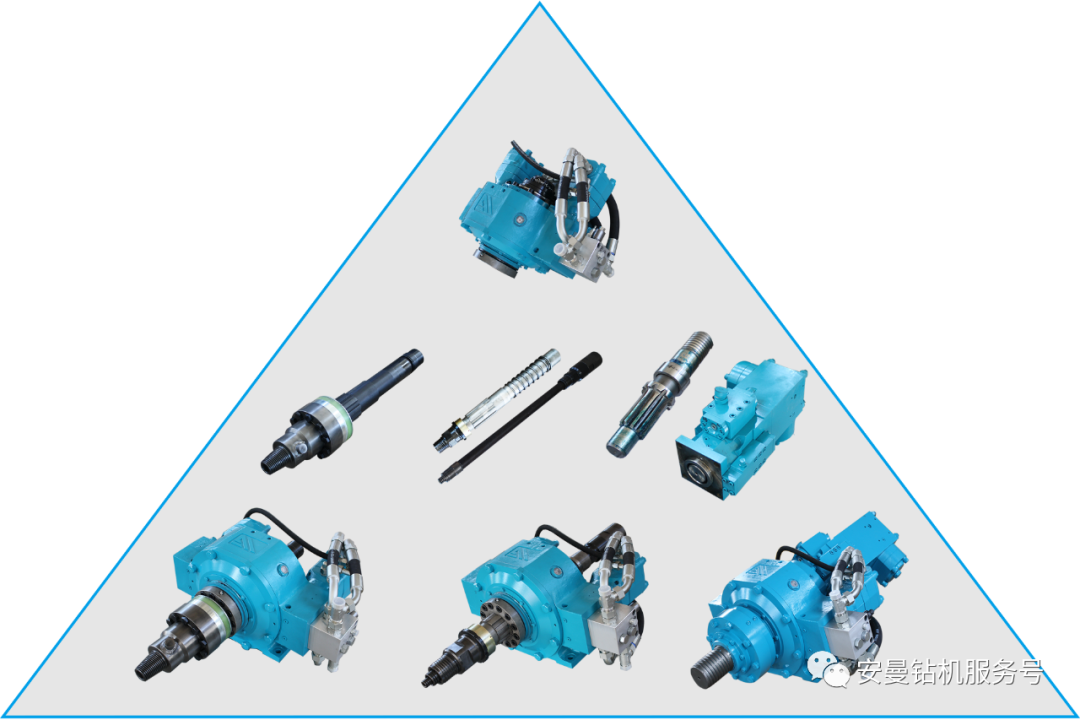

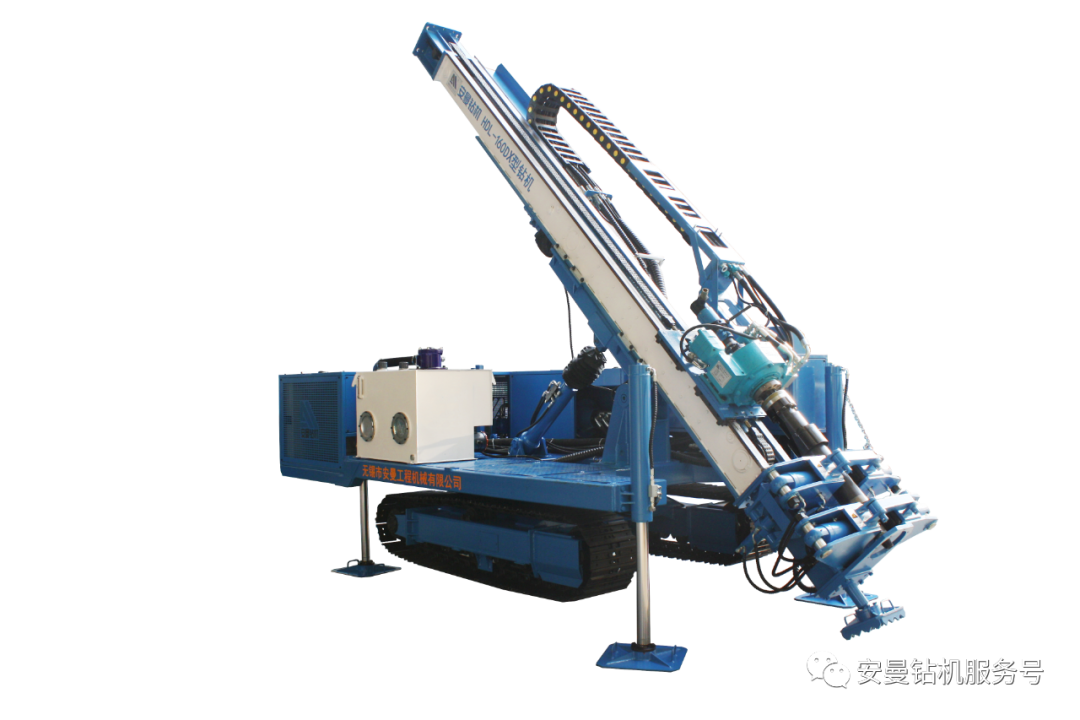

The HDL-160DX drill power head is optional

Anchor, rotary spray, top drive three modules

Main construction characteristics:

1、Power head can be easily selected with three modules:anchorage, rotary spray, top drive;

2、The new gripper structure, convenient replacement of tile, reduce the use cost;

3、The appearance of the whole machine optimization, simple structure, beautiful appearance, easy to clean up;

4、When the top drive module is selected, it can accommodate both high speed and top drive functions, especially suitable for moderate and complex stratum construction
