HDL-200C jet grouting drilling rig

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview
Quick Details
Applicable Industries: Construction works , Energy & Mining Showroom Location: None
Condition: New Type: Multifunctional  Drilling Rig
Power Type: Diesel Place of Origin: Jiangsu, China
Brand Name: ANMAN Usage: Water Well
Dimension(L*W*H): 7500*2400*3000 Weight: 17500 KG
Warranty: 1 Year Marketing Type: New Product 2024
Machinery Test Report: Provided Video outgoing-inspection: Provided
Warranty of core components: 1 Year Core Components: Motor, Pump, Engine
Key Selling Points: fitted with imported hydraulic system Drilling Diameter: 1000~3000mm
Drilling Depth: Max.220m Mobility: available
Output speed of rotary head(max)(r/min): 0-20、80 Output torque of rotary head(max)(N.m): 12000
Rated lifting force (kN): 80 Rated feeding force (kN): 80
Supply Ability
Supply Ability 100 Set/Sets per Month
Packaging & Delivery
Packaging Details Drilling rig naked, other accessories carton packaging Port Shanghai Port
Product Detail
Products Description
  •
  •
  •
  •



HDL-200C





HDL series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex
formation according to market request.
Application
PRODUCT SPECIFICATIONS

Model number

HDL-200C

Hole diameter(mm)

Φ100~Φ300

Hole depth(m)

180~220

Rod diameter(mm)

Φ73,Φ89,Φ102,Φ114,Φ146,Φ168,Φ194,Φ219

Hole angle(°)

-30~105

Output speed of rotary head(max)(r/min)

80

Output torque of rotary head(max)(N.m)

14000

Lifting speed of rotary head(m/min)

0~10、50

Feeding speed of rotary head(m/min)

0~10、50

Input power(Diesel)(kW)

194

Dimension(L*W*H)(mm)

7500*2400*3000

Vertical Working Dimension (L*W*H)(mm)

6200*2400*7450

Weight(kg)

17500

Elevating power of winch(KN)

11

Impact power of rotary head(max)(N.m)

900

Impact frequency of rotary head(max)(b/min)

2200

Rated lifting force (kN)

80

Rated feeding force (kN)

80

Feeding stroke(mm)

3600

Sliding stroke(mm)

1500

Climbing angle(°)

20

Working pressure(MPa)

25

Walking speed(m/h)

1600/1000

Gripper diameter(mm)

Φ73~Φ250

Fuel tank volume(L)

300

Details





Top drive drilling head——suitable for all kinds of soil condition

Max impact energy: 900N·m

Max impact frequency: 2200b/min

Max torque: 14000N·m

Max rotary speed: 70r/min







Fitted with imported hydraulic system——more stable system.





Engine to work/Diesel to walk

(Optional full diesel power

——HDL-200C)







Swiveling console——more convenient for operation, more flexible and safer.



Omnidirectional variable angle mechanism——more flexible, suit for many kinds of projects.









250mm opening diameter clamp——suitable for big hole drilling construction.

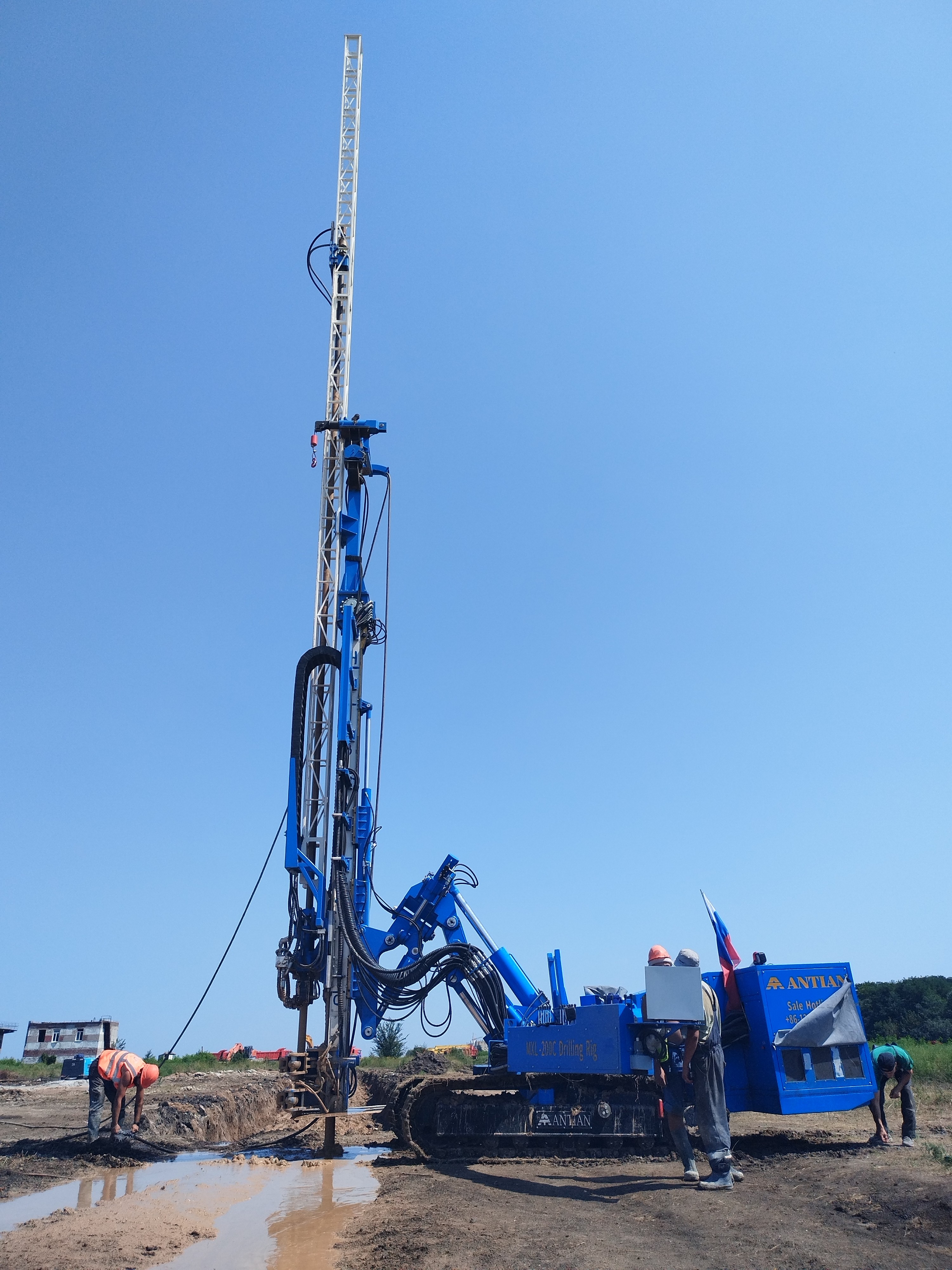

Successful projects
