SJL-120 MJS method jet grouting equipment

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview
Quick Details
Applicable Industries: Construction works , Energy & Mining Showroom Location: None
Condition: New Type: Rotary Drilling Rig
Power Type: Electric Place of Origin: Jiangsu, China
Brand Name: ANMAN Usage: Water Well
Dimension(L*W*H): 2755*2020*2710 Weight: 6400 KG
Warranty: 1 Year Marketing Type: New Product 2022
Machinery Test Report: Provided Video outgoing-inspection: Provided
Warranty of core components: 1 Year Core Components: Motor, Pump, Engine
Key Selling Points: Super jet grouting Drilling Diameter: 200mm
Drilling Depth: Max.60m Mobility: available
Rated rotary speed(max)(r/min): High:0-40, Low:0-20 Rotary output torque(max)(N.m): High:6000, Low:12000
Rated lifting force (kN): 100 Rated feeding force (kN): 50
Supply Ability
Supply Ability 100 Set/Sets per Month
Packaging & Delivery
Packaging Details Drilling rig naked, other accessories carton packaging Port Shanghai Port
Video Description
Product Detail
Products Description
  •
  •
  •
  •

SJL-120



SJL-120 crawler drill can be applied to MJS construction method.



Main characters:



MJS construction method adopts unique porous drill pipe and drill bit to achieve the in-hole compulsory slurry discharge and underground pressure detection, and controls the underground pressure by forcing adjustment of the slurry discharge volume, reatly reducing the impact of the underground environment and further ensuring the diameter of the underground construction pile.

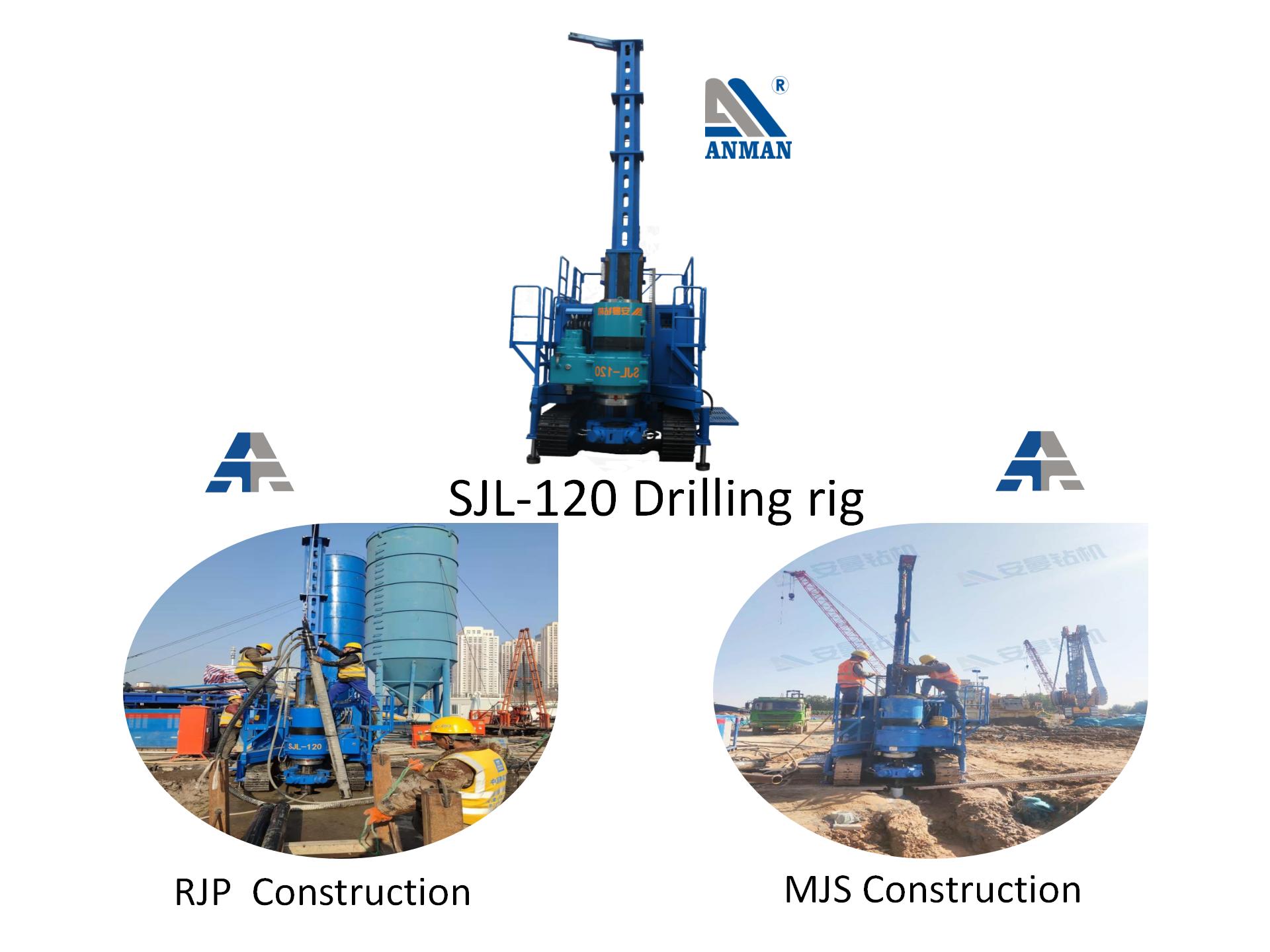

Application
Product Specifications

Model number

SJL-120

Hole diameter(mm)

Φ225

Hole depth(m)

0~60

Rod diameter(mm)

Φ90,Φ114,Φ142,Φ170,Φ216

Hole angle(°)

90

Output speed of rotary head(max)(r/min)

high speed:0-40
low speed:0-20

Output torque of rotary head(max)(N.m)

high speed:6000
low speed:12000

Lifting speed of rotary head(m/min)

0-3

Feeding speed of rotary head(m/min)

0-6

Input power(Electromotor)(kW)

37

Dimension(L*W*H)(mm)

2755*2020*2710

Vertical Working Dimension (L*W*H)(mm)

2755*2020*2710

Weight(kg)

6400

Rated lifting force (kN)

100

Rated feeding force (kN)

50

Feeding stroke(mm)

1000

Sliding stroke(mm)

300

Working pressure(MPa)

rotary/lifting:25
Auxiliary action:14

Walking speed(m/h)

560

Deputy tower

600kg、3.5m

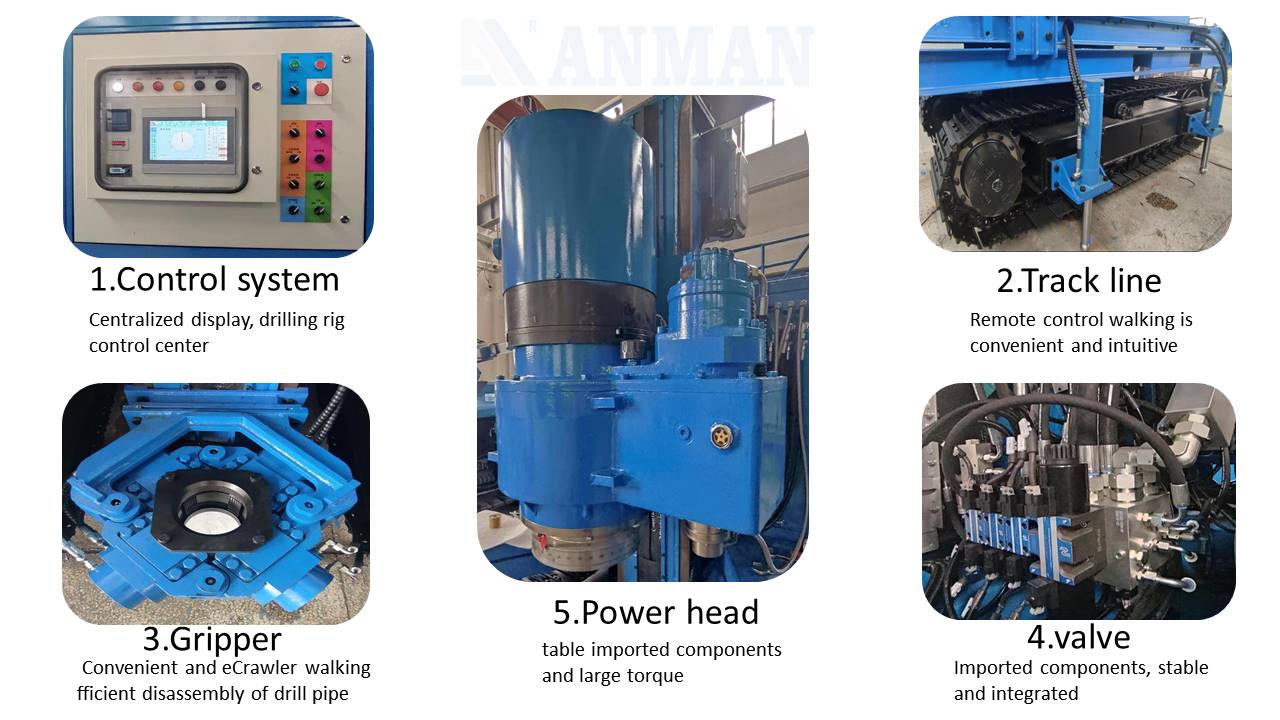

Details
Complete set of construction solutions
  • Drilling rig

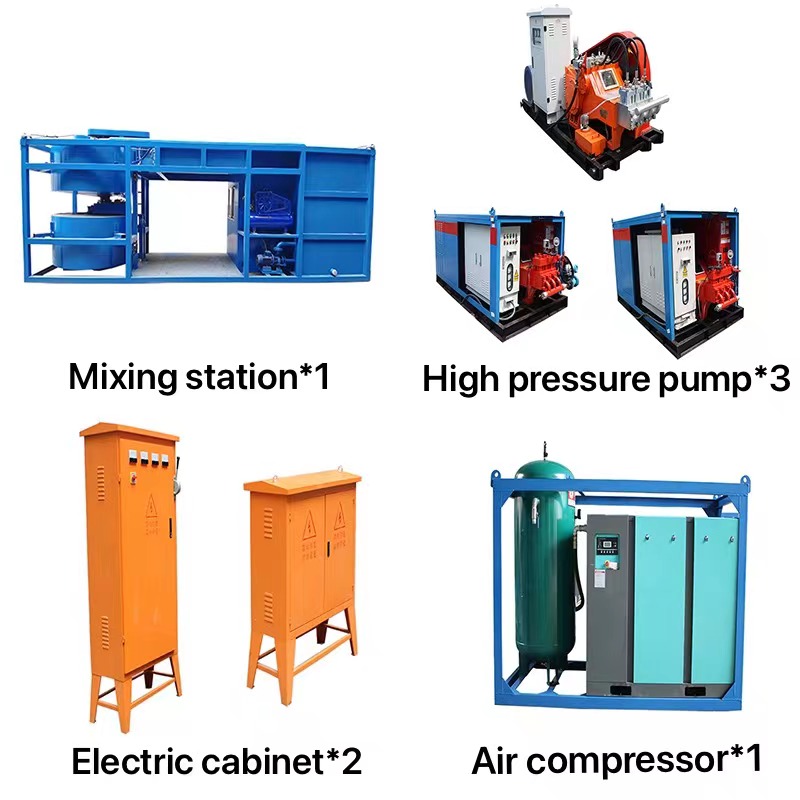

  • Background configuration (optional)

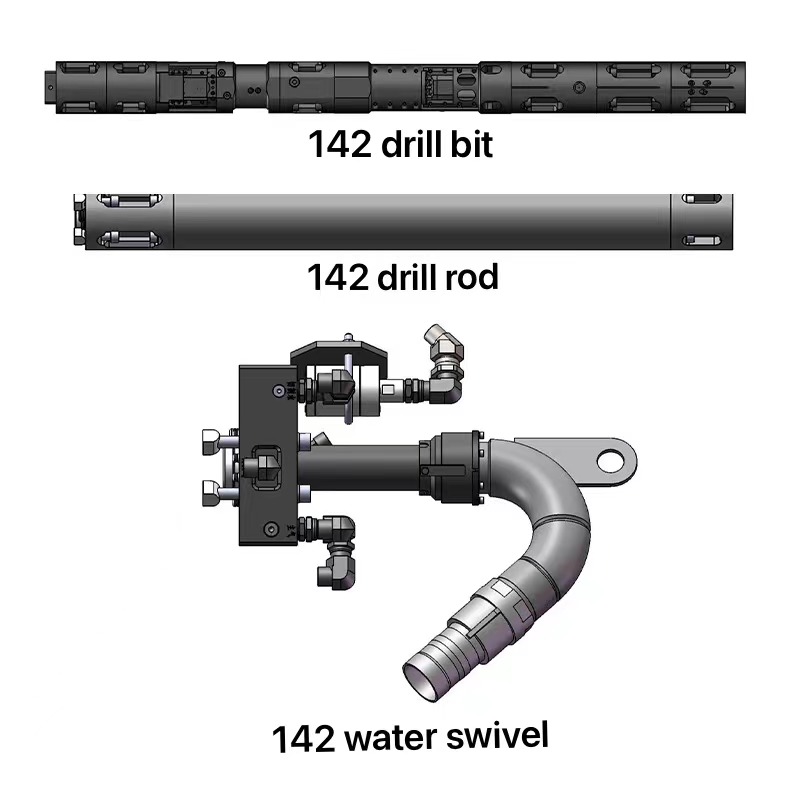

  • Bha Arrangement (optional)
  •
  •
  •
  •

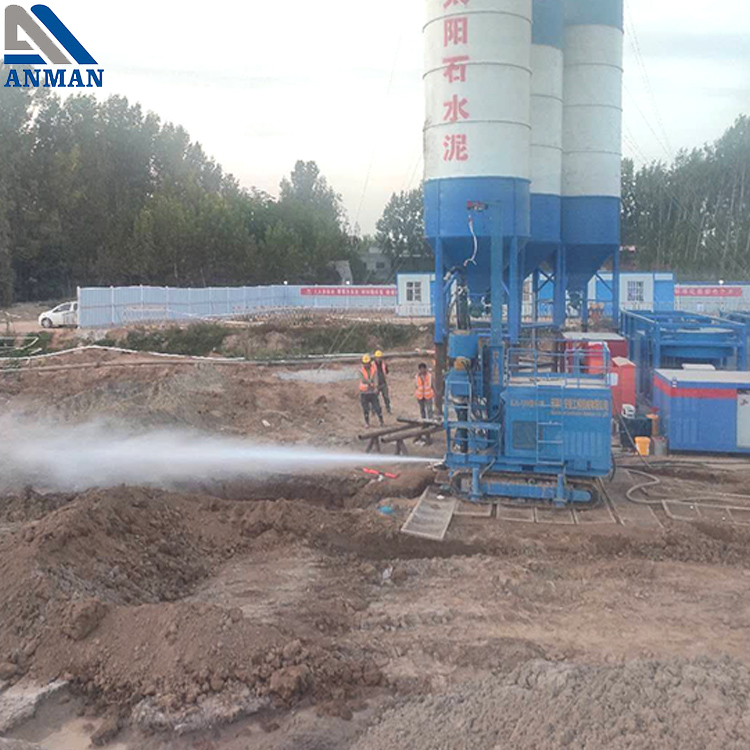

Successful projects
