HDL-180D1 Grouting pilot hole micropile drill rig
HDL-180D1 Grouting pilot hole micropile drill rig
.jpg)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
| Applicable Industries: | Construction works , Energy & Mining | Showroom Location: | None |
| Condition: | New | Type: | Rotary Drilling Rig |
| Power Type: | Electric | Place of Origin: | Jiangsu, China |
| Brand Name: | ANMAN | Usage: | Ore |
| Dimension(L*W*H): | 6750*2100*2000 | Weight: | 9000 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2022 |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Motor, Pump, Engine |
| Key Selling Points: | Top drifter drill | Drilling Diameter: | 100mm, 200mm |
| Drilling Depth: | Max.180m | Mobility: | available |
| Output speed of rotary head(max)(r/min): | 70 | Output torque of rotary head(max)(N.m): | 14000 |
| Rated lifting force (kN): | 90 | Rated feeding force (kN): | 45 |
| Supply Ability | 100 Set/Sets per Month |
| Packaging Details | Drilling rig naked, other accessories carton packaging | Port | Shanghai Port |

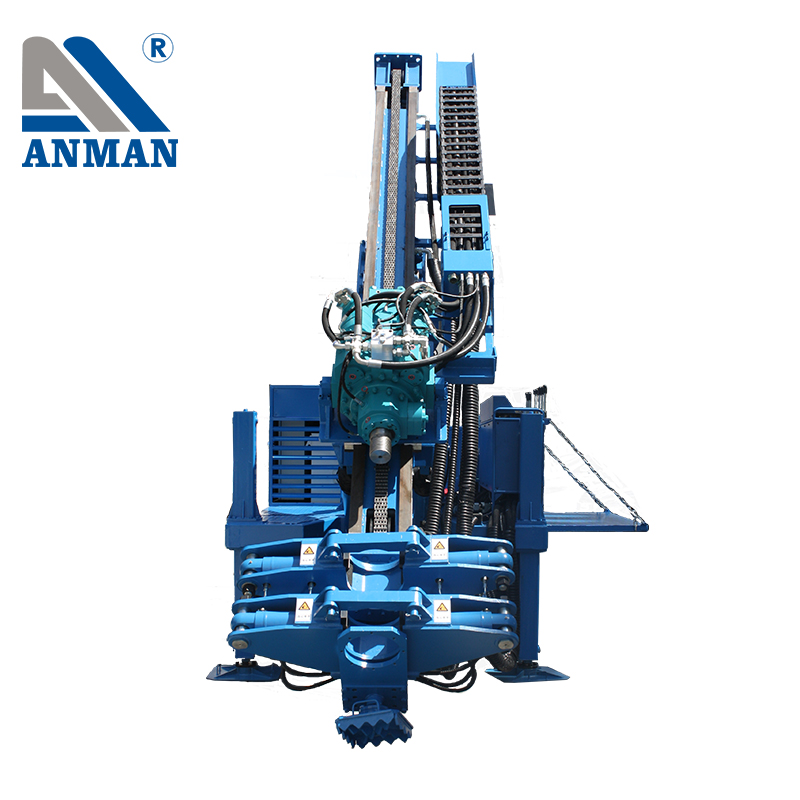

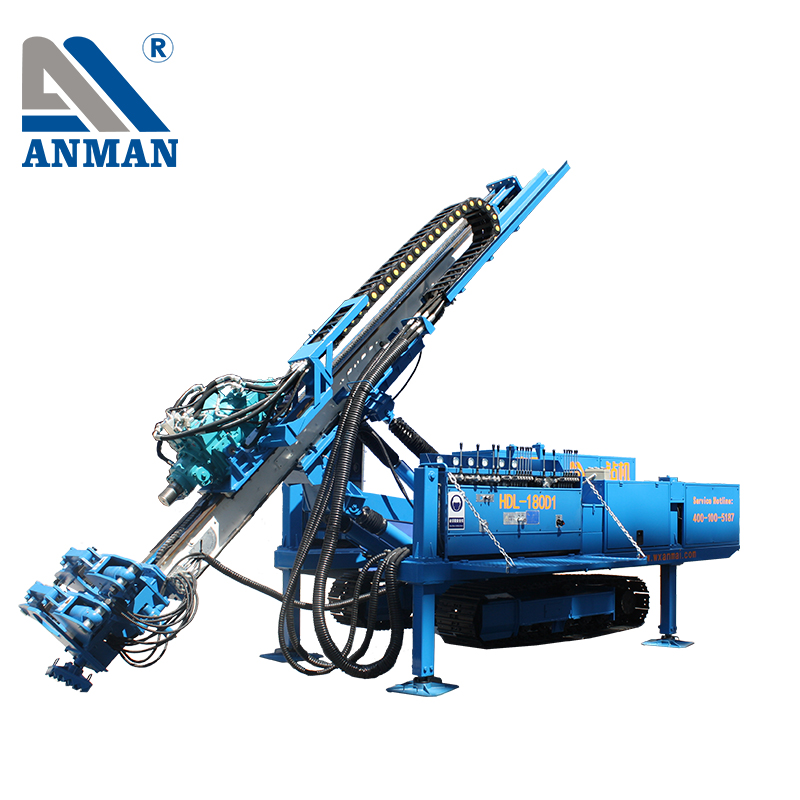

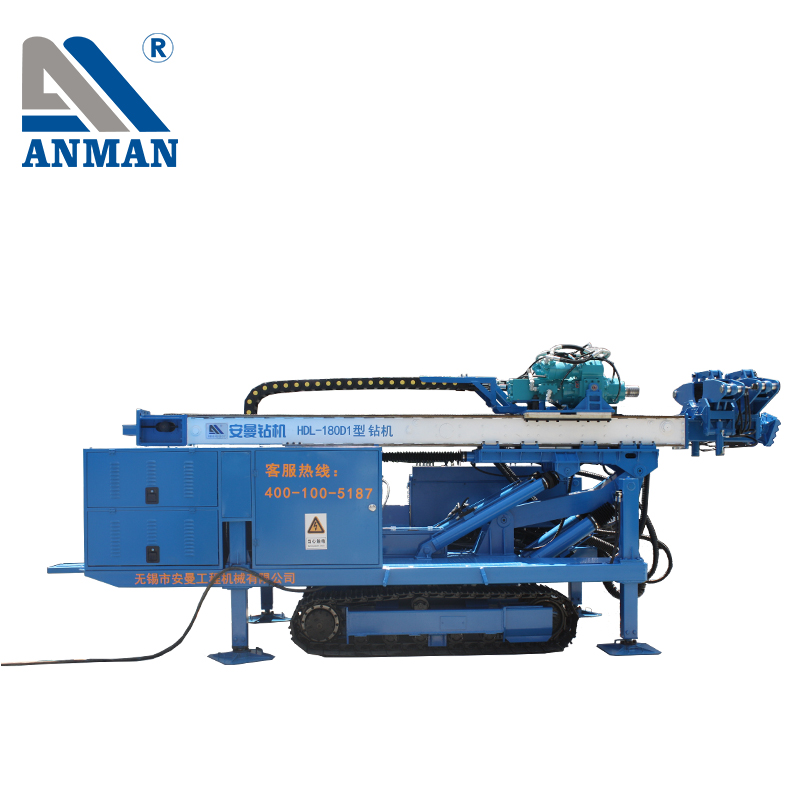

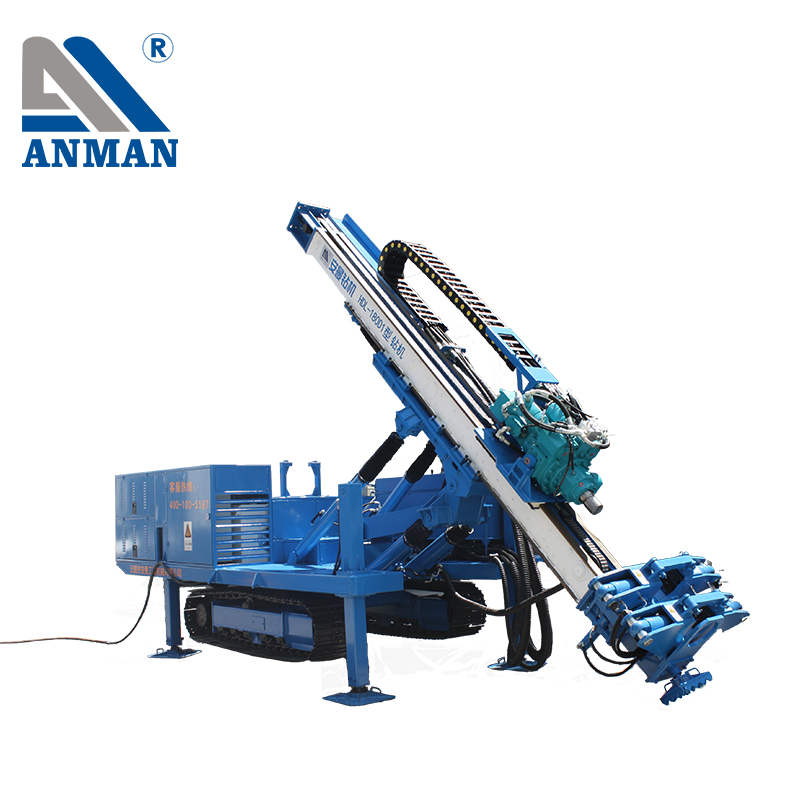

HDL-180D1
HDL series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex formation according to market request.
|
Model number |
HDL-180D1 |
|
Hole diameter(mm) |
Φ100~Φ250 |
|
Hole depth(m) |
150~180 |
|
Rod diameter(mm) |
Φ73,Φ89,Φ102,Φ114，Φ146,Φ168,Φ219 |
|
Hole angle(°) |
-12~90 |
|
Output speed of rotary head(max)(r/min) |
70 |
|
Output torque of rotary head(max)(N.m) |
14000 |
|
Lifting speed of rotary head(m/min) |
0~5,30 |
|
Feeding speed of rotary head(m/min) |
0~10,60 |
|
Input power(Electromotor)(kW) |
55+55 |
|
Dimension(L*W*H)(mm) |
6750*2100*2000 |
|
Vertical Working Dimension (L*W*H)(mm) |
4800*2400*6750 |
|
Weight(kg) |
9000 |
|
Impact power of rotary head（max）(N.m) |
900 |
|
Impact frequency of rotary head（max）(b/min) |
2100 |
|
Rated lifting force (kN) |
90 |
|
Rated feeding force (kN) |
45 |
|
Feeding stroke(mm) |
4000 |
|
Sliding stroke(mm) |
1500 |
|
Climbing angle(°) |
20 |
|
Working pressure(MPa) |
20 |
|
Walking speed(m/h) |
3000/1500 |

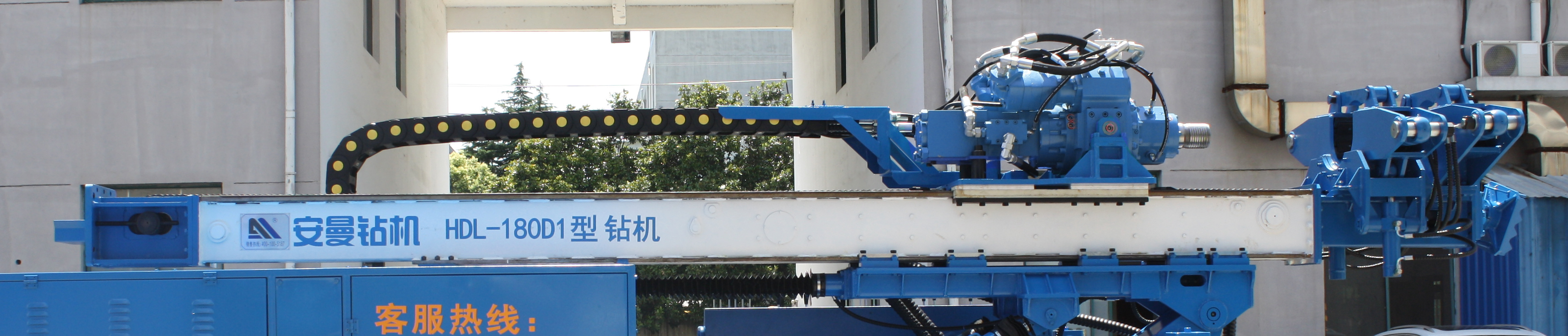

1、Top drive type rotary head
With large torque, high speed, high impact frequency and stable performance.

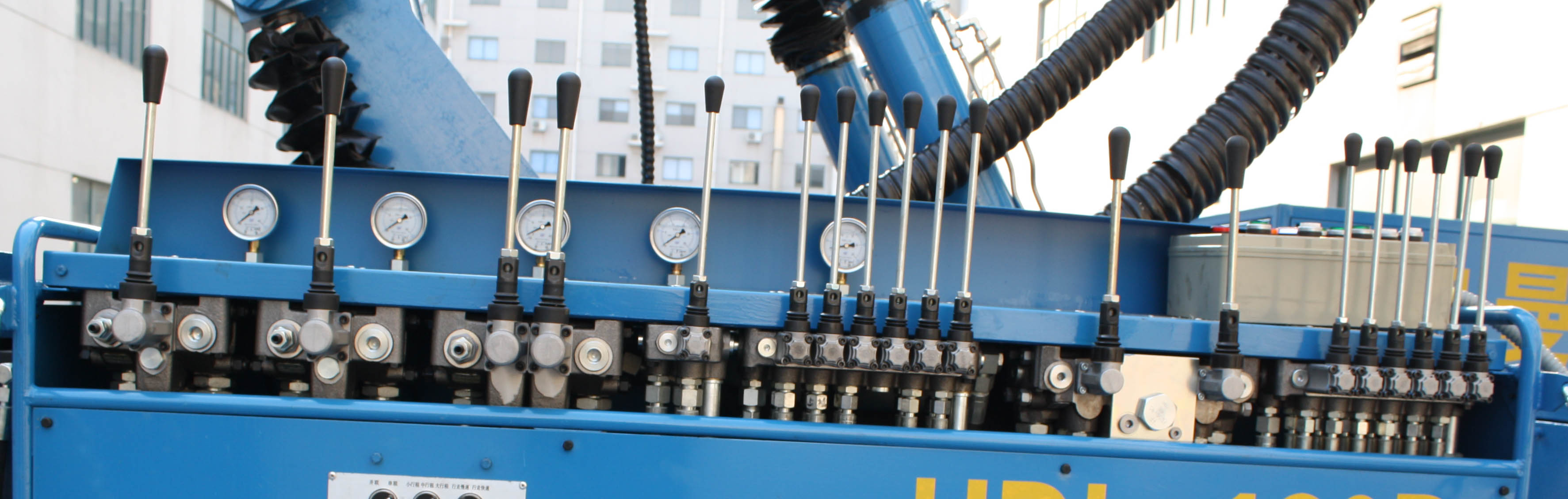

2、Stable hydraulic system
It is equipped with control valve that is imported with original packaging. It has reliable quality, high performance, long performance life and good controllability.
3、Its stroke length is longer, it can combine 4-meter-long drilling rod in one time, has higher efficiency.

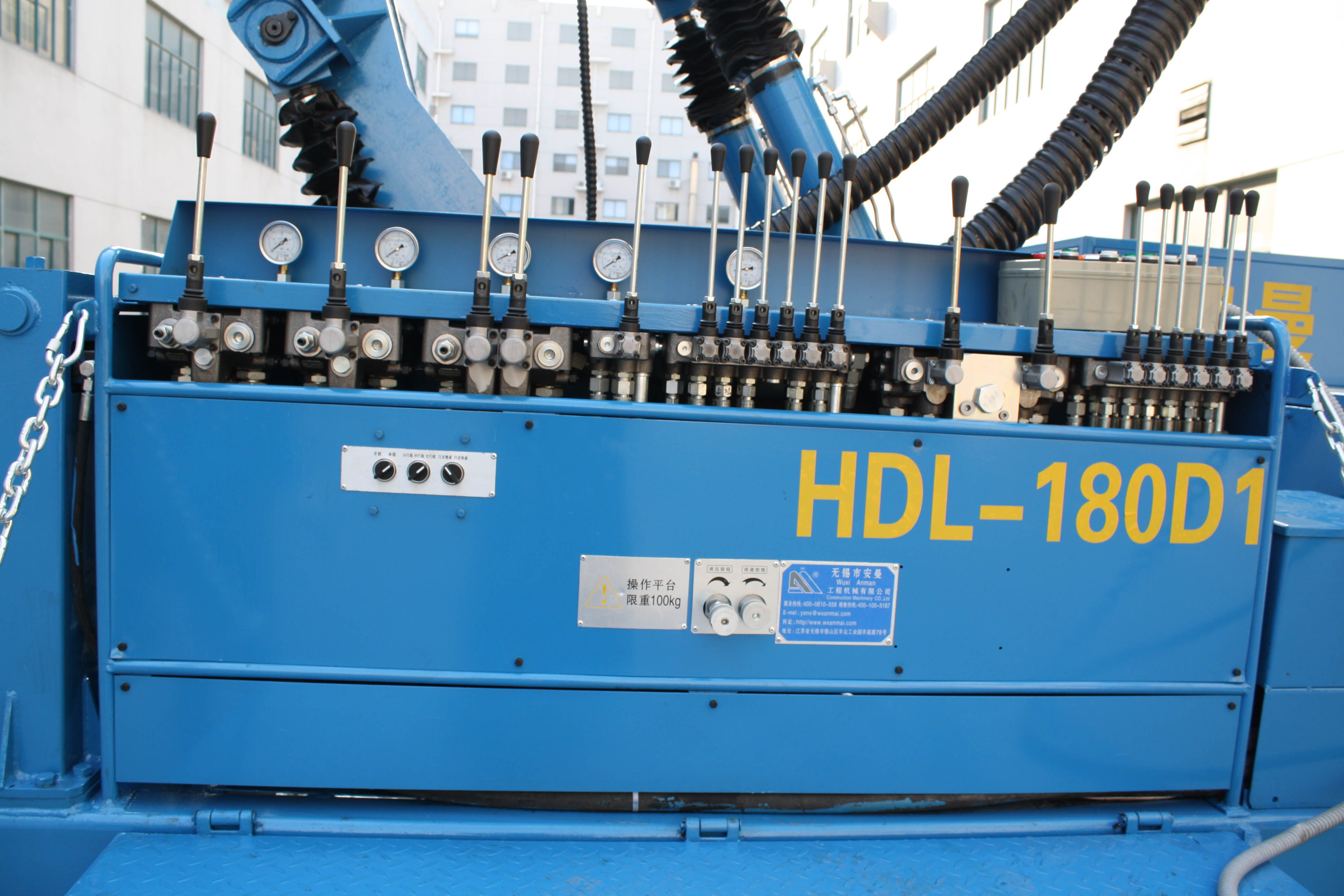

4. Easy operating
We adopt imported control valve, it is more flexible , reliable and convenient for maintenance.

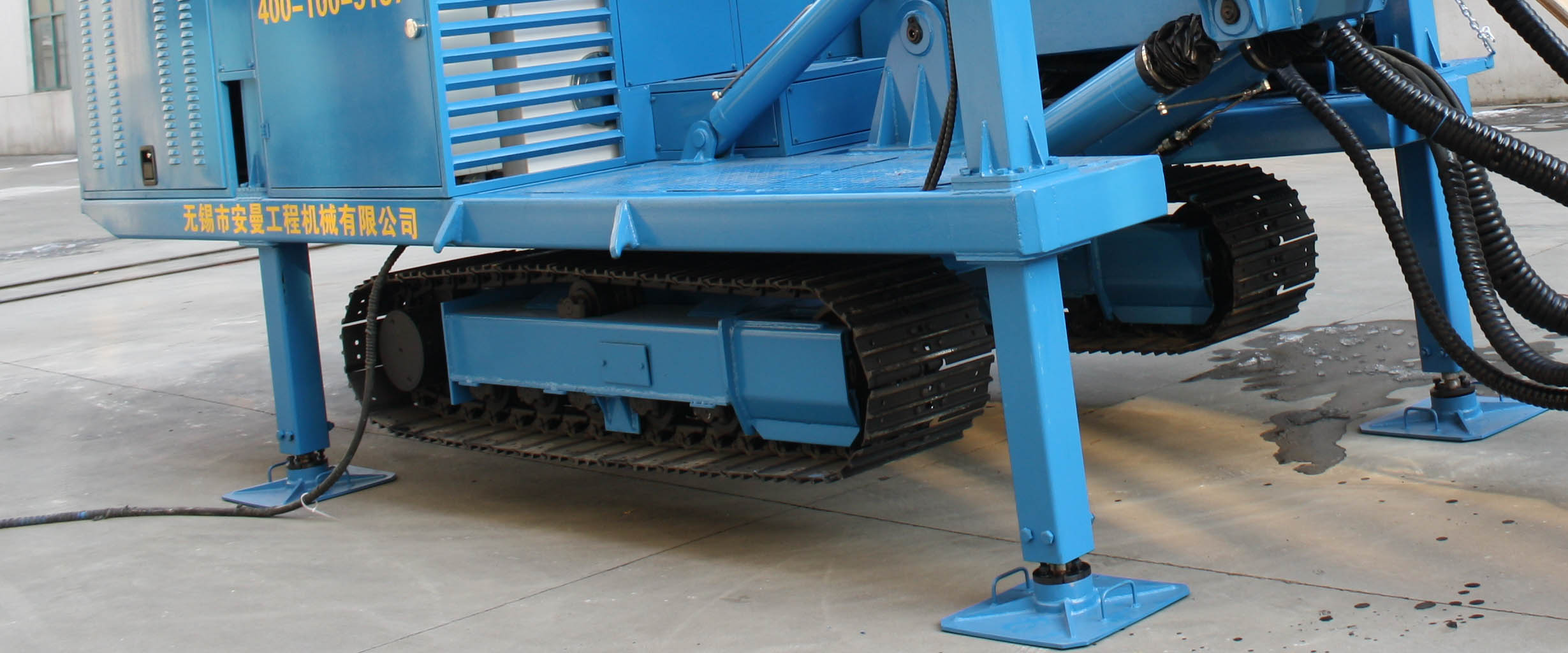

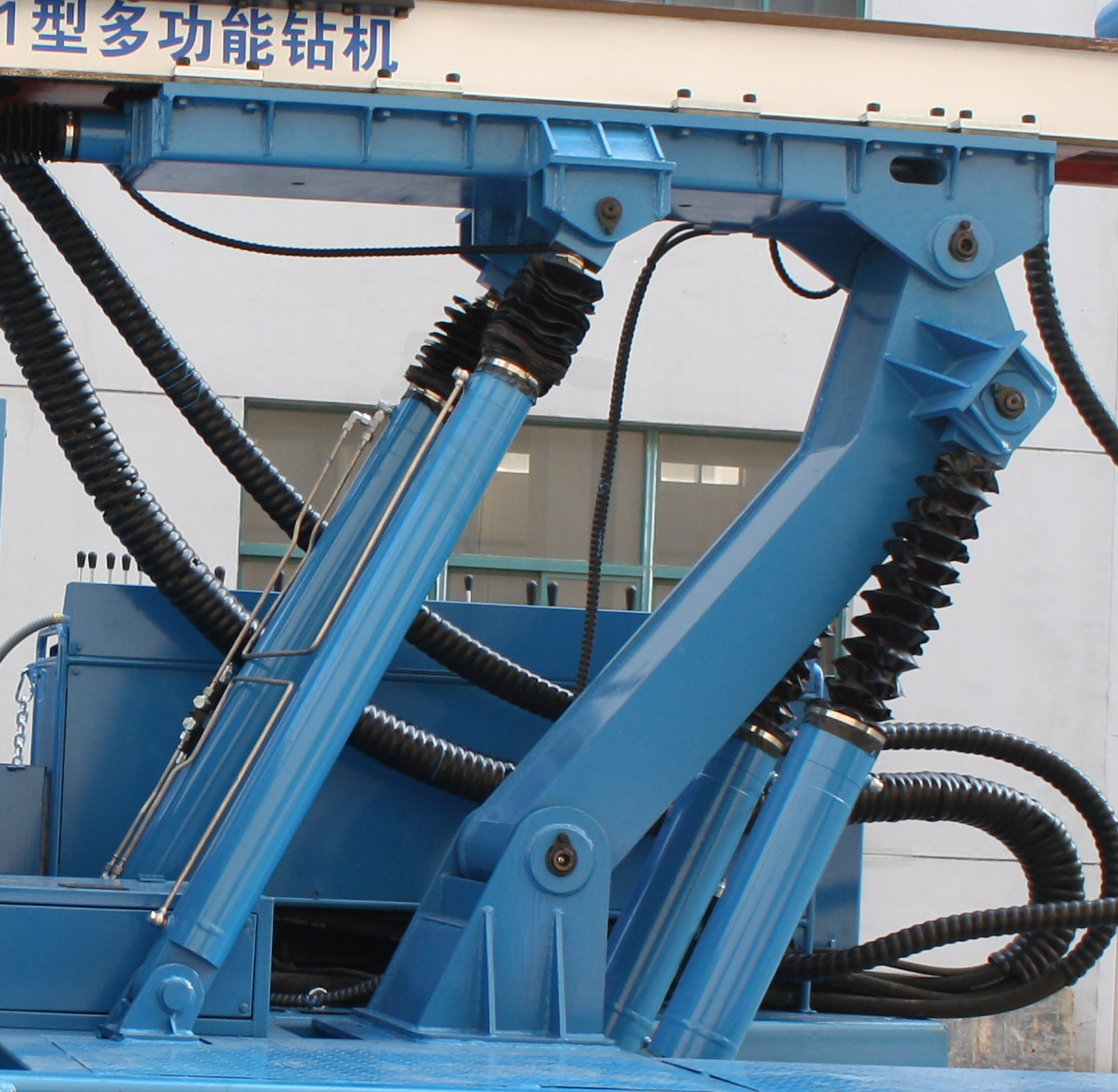

5、The structure design is more stable
It is steady when construction ， suitable for tunnel construction. And it can reduce the wastage of drilling tools.
6、The platform is wider, and so the construction environment is better.
