HDL-168C Guiding hole Drilling Rig
HDL-168C Guiding hole Drilling Rig
| Applicable Industries: | Construction works , Energy & Mining | Showroom Location: | None |
| Condition: | New | Type: | Rotary Drilling Rig |
| Power Type: | Diesel | Place of Origin: | Jiangsu, China |
| Brand Name: | ANMAN | Usage: | Water Well |
| Dimension(L*W*H): | 6400*2300*2400 | Weight: | 8200 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Motor, Pump, Engine |
| Key Selling Points: | Easy to Operate | Drilling Diameter: | 300mm, 200mm |
| Drilling Depth: | Max.180m | Mobility: | available |
| Hole diameter(mm): | 150~250 | Hole depth(m): | 140~180 |
| Rod diameter(mm): | 73,89,102,114,146,168,194,219 | Hole angle(°): | 0~90 |
| Output speed of rotary head(max)(r/min): | 135 | Output torque of rotary head(max)(N.m): | 11000 |
| Lifting speed of rotary head(m/min): | 5,25 | Feeding speed of rotary head(m/min): | 10,50 |
| Input power(Diesel)(kW): | 119 | After- sales service: | Video technical support, Online support |
| Supply Ability | 100 Set/Sets per Month |
| Packaging Details | Drilling rig naked, other accessories carton packaging | Port | Shanghai Port |

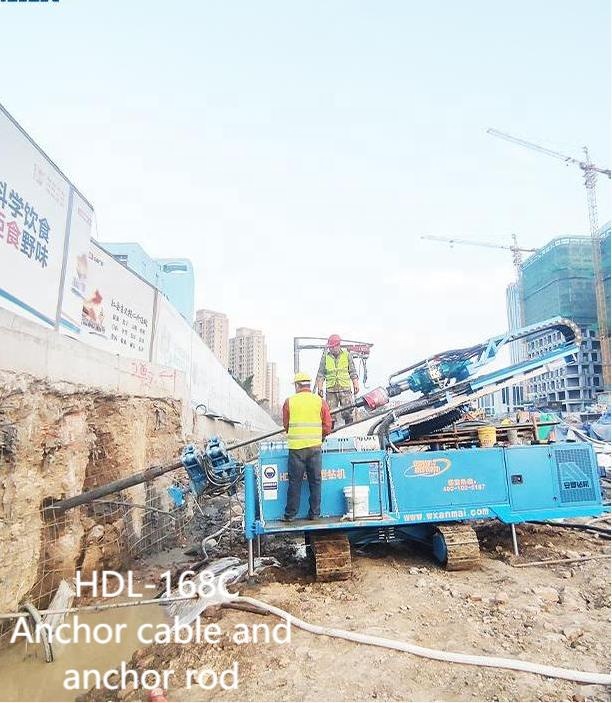

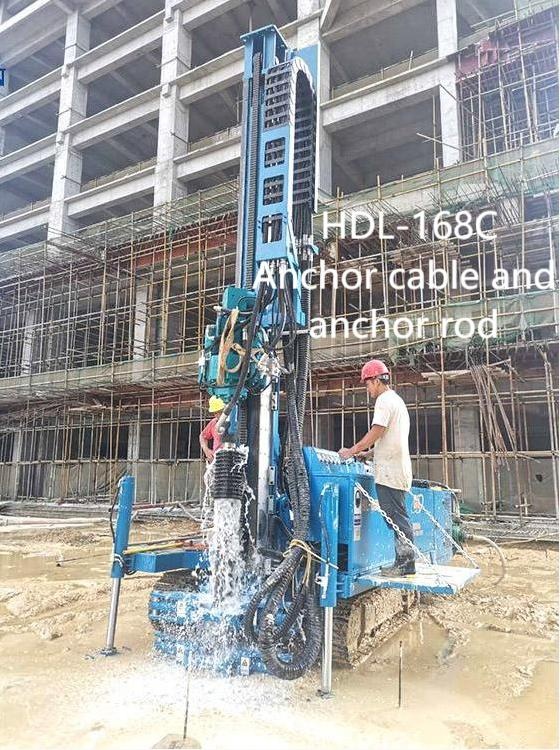

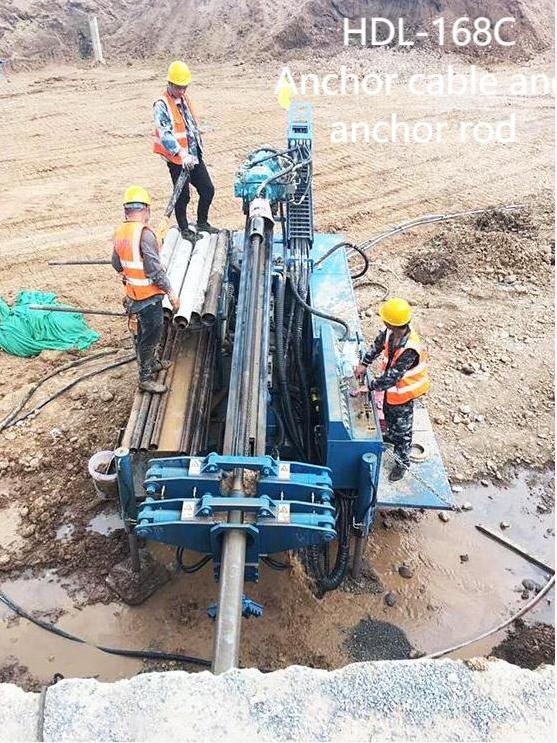

HDL-168C

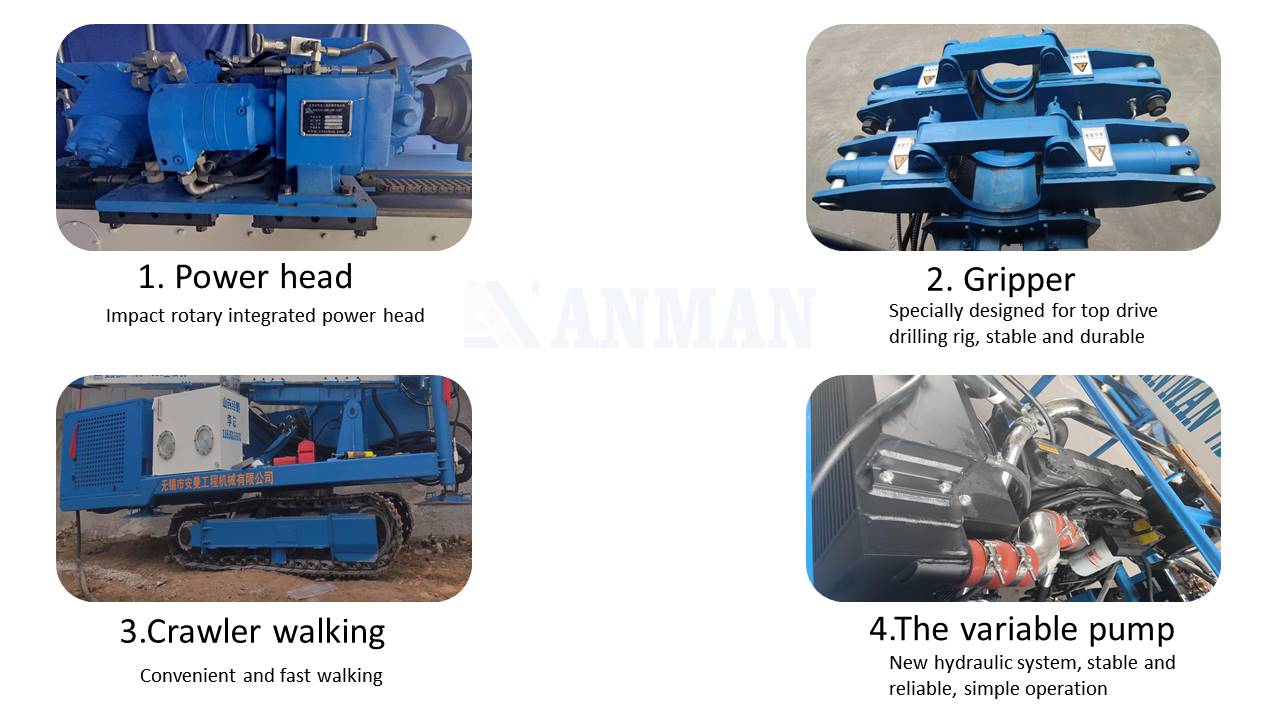

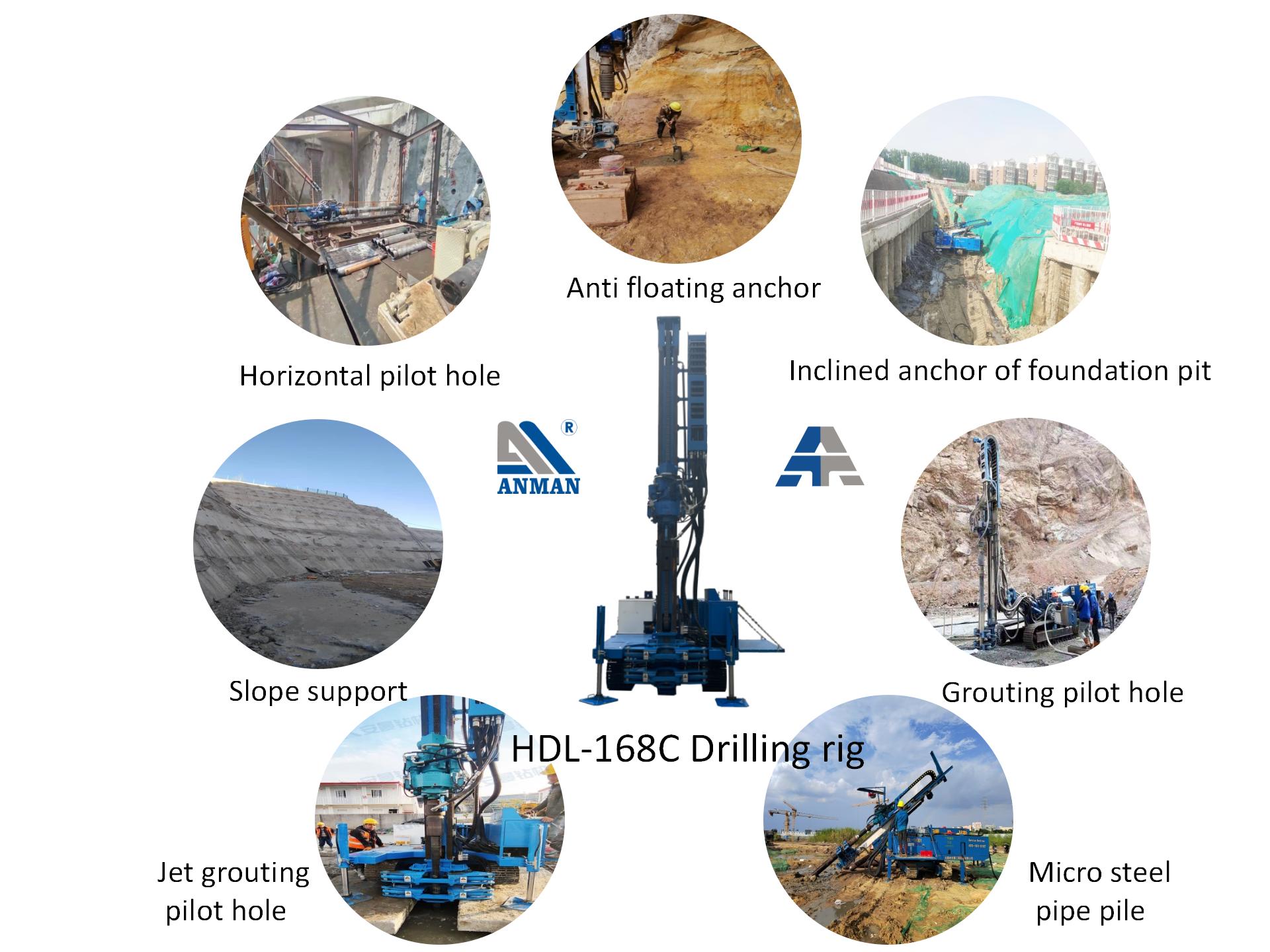

HDL series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex formation according to market request.
|
Model number |
HDL-168C |
|
Hole diameter(mm) |
Φ150~Φ250 |
|
Hole depth(m) |
140~180 |
|
Rod diameter(mm) |
Φ73,Φ89,Φ133,Φ146,Φ168,Φ194,Φ219 |
|
Hole angle(°) |
0~90 |
|
Output speed of rotary head(max)(r/min) |
135 |
|
Output torque of rotary head(max)(N.m) |
11000 |
|
Lifting speed of rotary head(m/min) |
5,25 |
|
Feeding speed of rotary head(m/min) |
10,50 |
|
Input power(Diesel)(kW) |
119 |
|
Dimension(L*W*H)(mm) |
6400*2300*2400 |
|
Vertical Working Dimension (L*W*H)(mm) |
4700*3100*6400 |
|
Weight(kg) |
7500 |
|
Impact power of rotary head（max）(N.m) |
650 |
|
Impact frequency of rotary head（max）(b/min) |
2300 |
|
Rated lifting force (kN) |
100 |
|
Rated feeding force (kN) |
50 |
|
Feeding stroke(mm) |
3400 |
|
Sliding stroke(mm) |
1200 |
|
Climbing angle(°) |
20 |
|
Working pressure(MPa) |
28 |
|
Walking speed(m/h) |
800 |
|

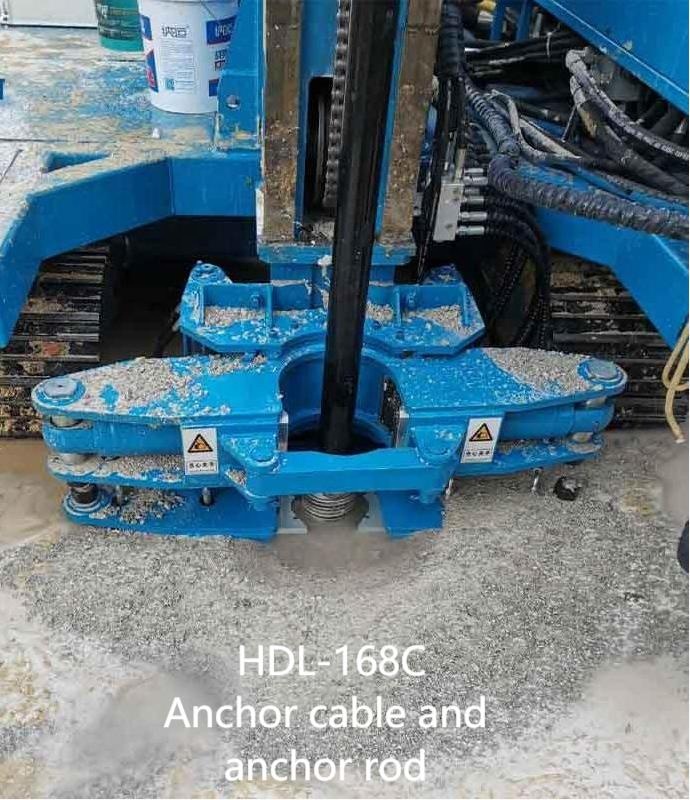

Gripper diameter(mm) |
Φ73~Φ250 |
