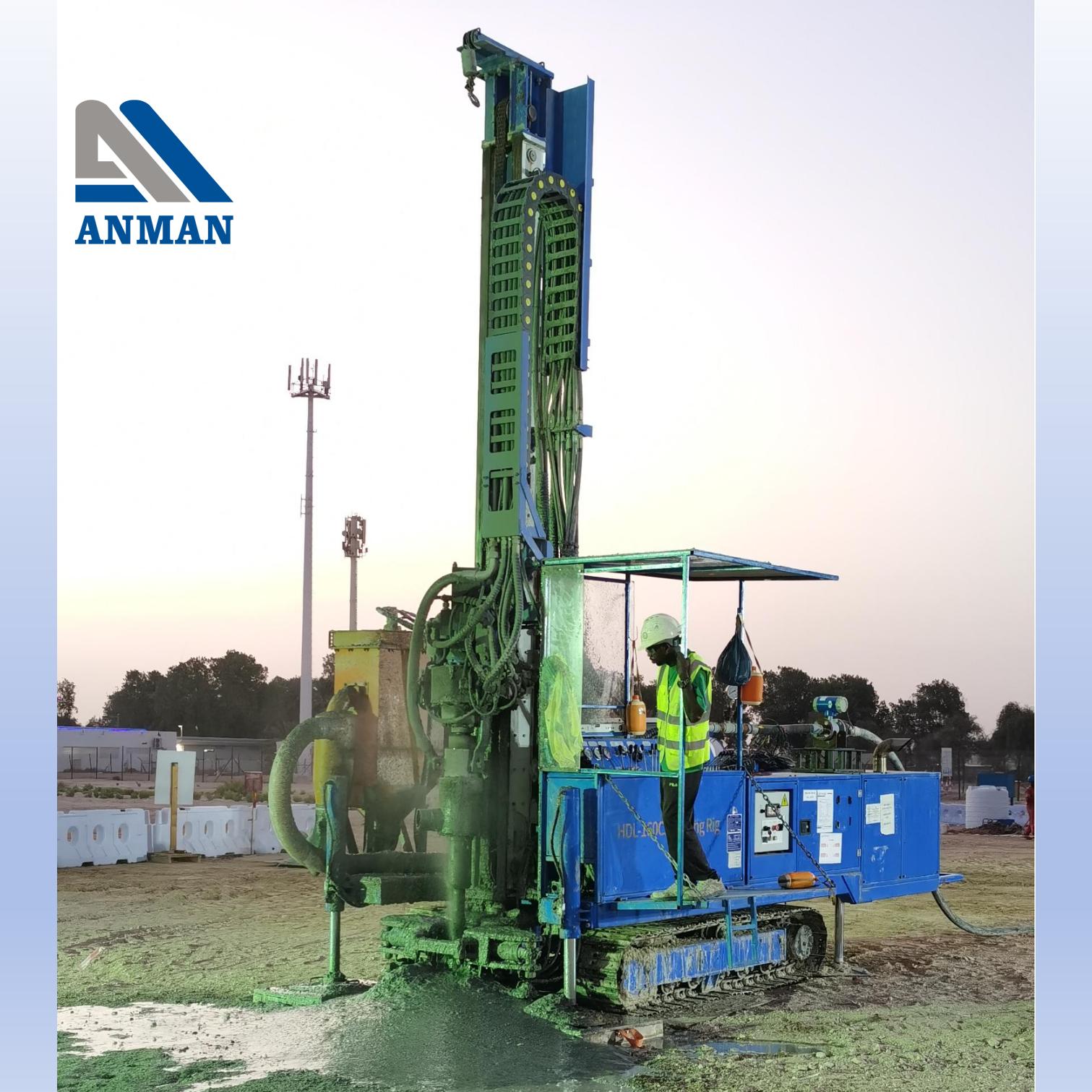

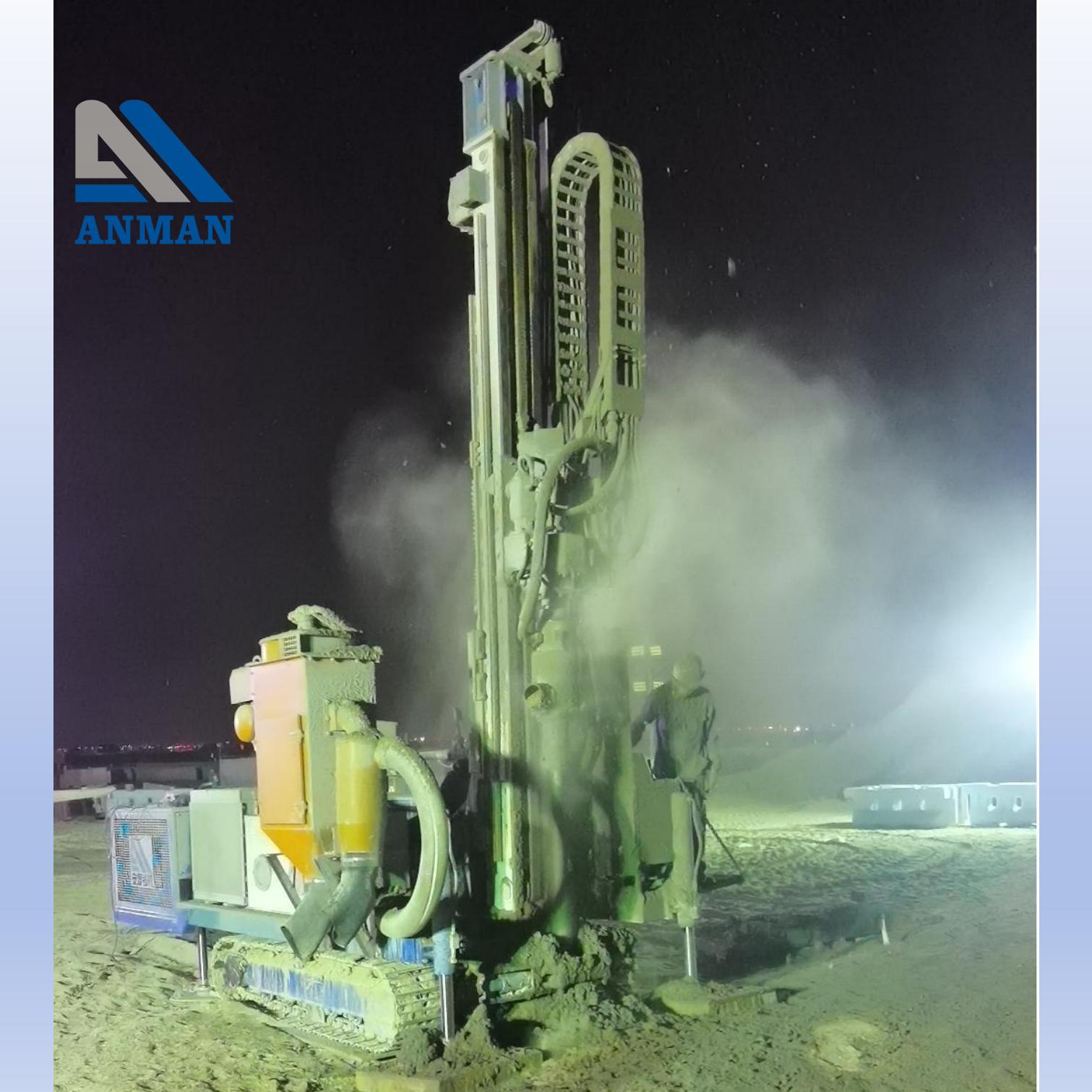

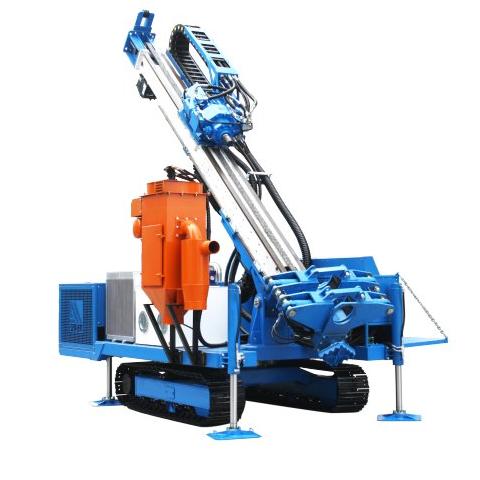

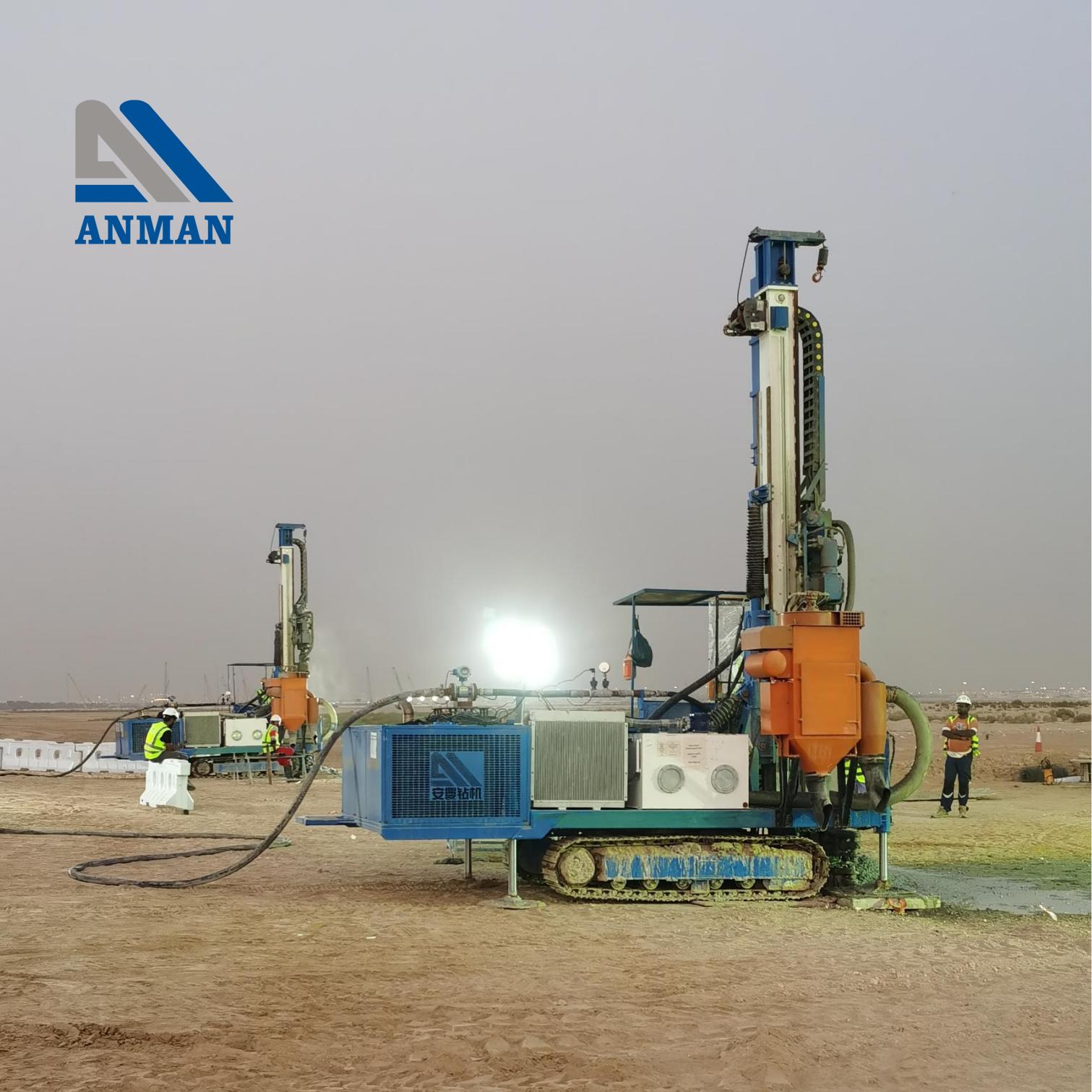

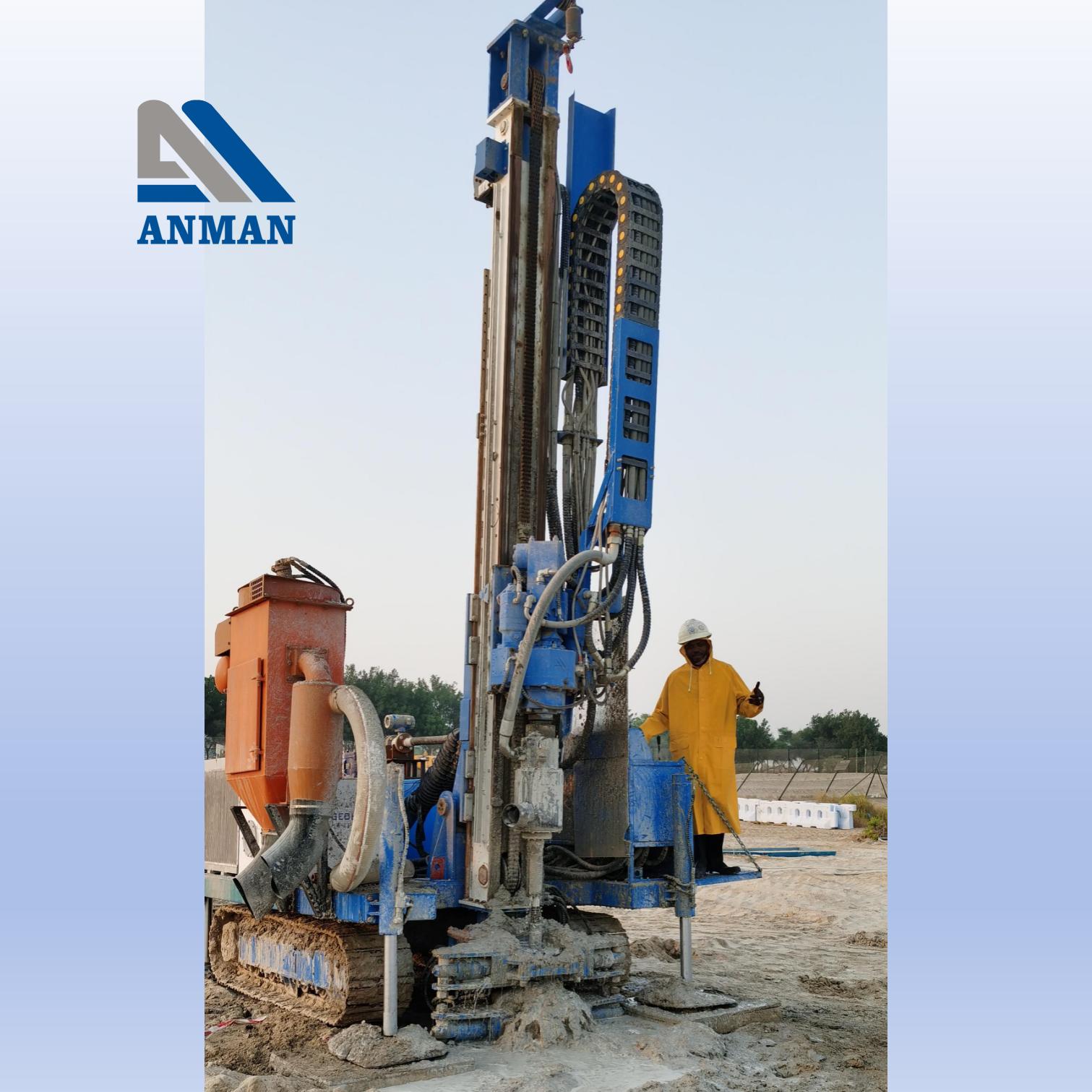

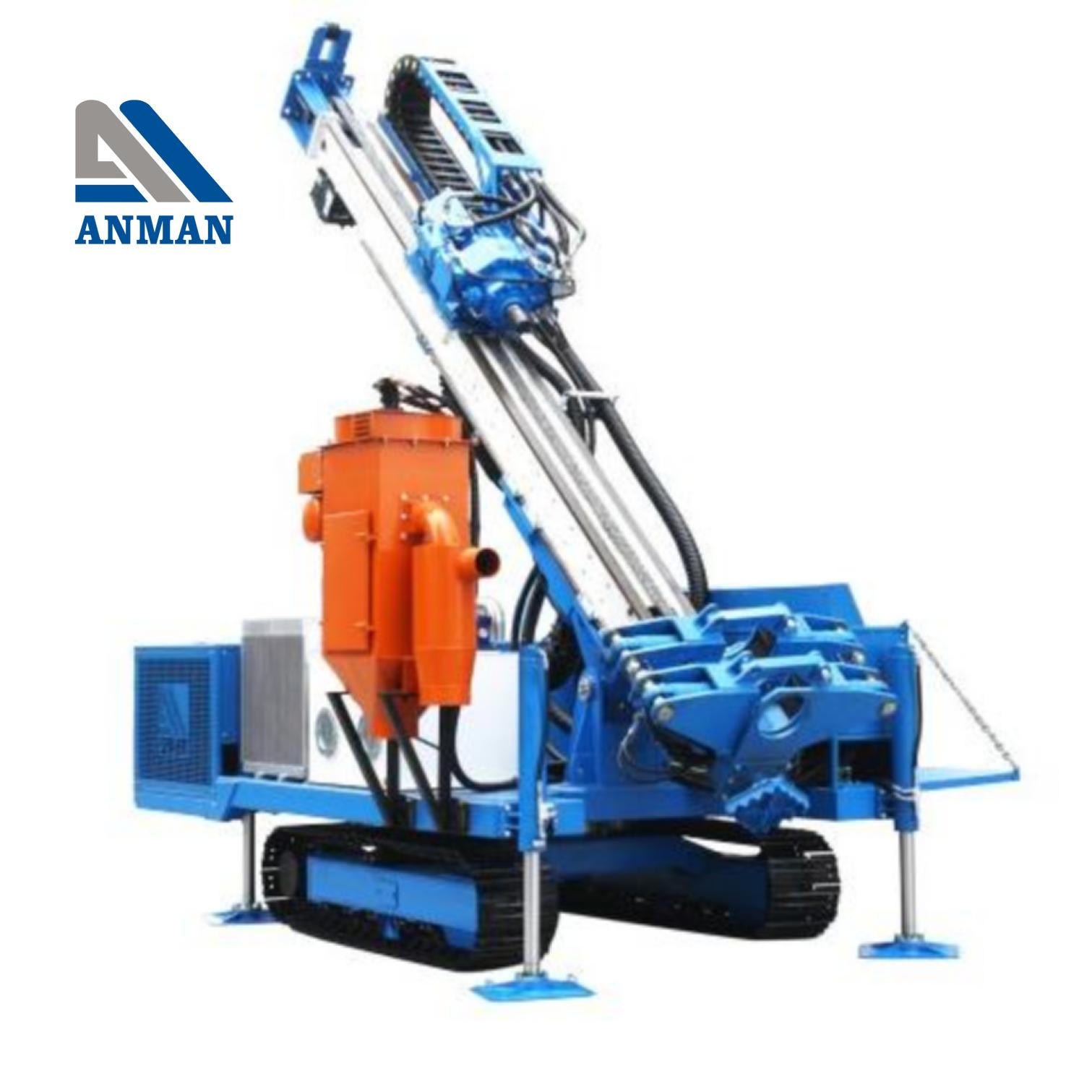

HDL-160 top drive type multi-functional drilling rig
HDL-160 top drive type multi-functional drilling rig
.jpg)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
HDL-160
|
Parameters |
HDL-160 |
|
Drill hole diameter（mm） |
φ150～φ250 |
|
Drilling depth（m） |
150～180 |
|
Drilling angle（°） |
0°～90° |
|
Drill pipe diameter（mm） |
Φ73、Φ89、Φ133、Φ146 |
|
Rated output torque(N.m) |
8400 |
|
Rotate speed（r/min) |
30、40、60、65、80、135 |
|
Power head lifting speed |
5、30m/min |
|
The feed speed of the power head |
0～2.8 Adjustable、45m/min |
|
Power head impact power |
650N.m |
|
Power head impact frequency |
2300bpm |
|
Rated lifting force（kN） |
80 |
|
Rated feed force（kN） |
40 |
|
Give the process（mm） |
3400 |
|
Skid stroke(mm) |
1200 |
|
Diesel power |
119kW |
|
weight（kg） |
7000 |
|
Climb through the angle |
15° |
|
Work pressure（Mpa） |
20 |
|
Shipping status(L×W×H, mm) |
6400×2300×2400 |
|
Vertical working state(L×W×H, mm) |
4700×3100×6400 |
|
Drilling angle（°） |
0°～90° |
|
Drill pipe diameter（mm） |
Φ73、Φ89、Φ133、Φ146 |
Main characters
1. The drifter with high frequency top impact function, can be achieved without pneumatic impact drilling.
2. Can realize double pipe drilling, not easy to happen stuck, buried drilling and other hole accidents.
3. Efficient drilling can be carried out in complex strata such as sand and pebble layer, rock-sandwiched soil, weathered rock and bleached stone.
4. The high speed of this machine is a highlight different from other micro-pile drills. It is not only suitable for the construction of complex strata, but also for the construction of soft soil with high efficiency.
5.Can choose three kinds of module power head, suitable for anchor, jet grouting, micro-piles construction.
