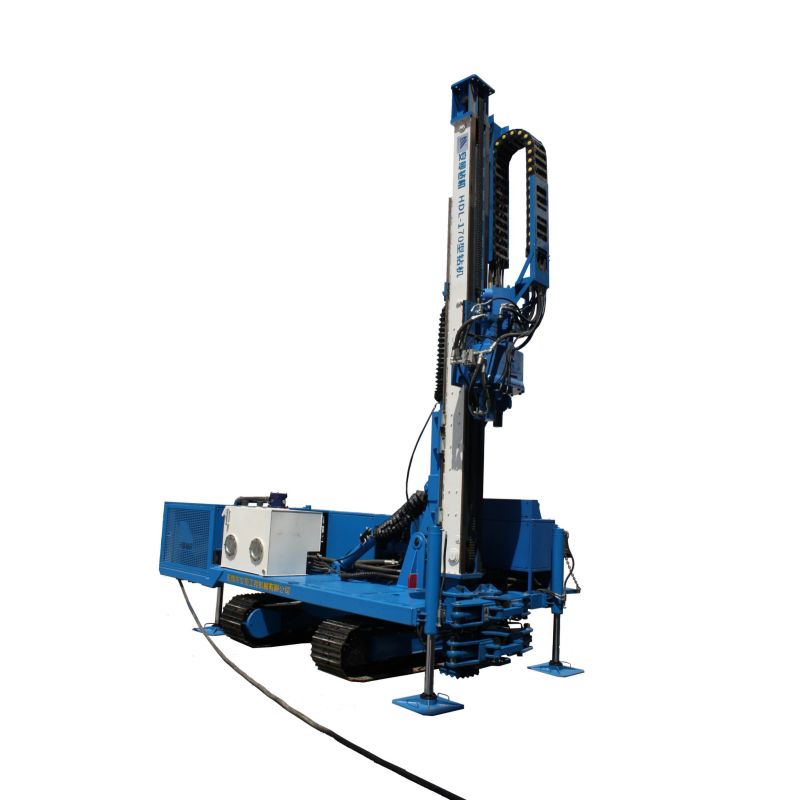

HDL-170 pipe construction micropile drill rig
HDL-170 pipe construction micropile drill rig
| Applicable Industries: | Construction works , Energy & Mining | Showroom Location: | None |
| Condition: | New | Type: | Micropile Drilling Rig |
| Power Type: | Electric | Place of Origin: | Jiangsu, China |
| Dimension(L*W*H): | 6400*2300*2400 | Weight: | 8200 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Motor, Pump, Engine |
| Key Selling Points: | fitted with imported hydraulic system | Drilling Diameter: | 150~250mm |
| Drilling Depth: | Max.180m | Mobility: | available |
| Output speed of rotary head(max)(r/min): | 235 | Output torque of rotary head(max)(N.m): | 10800 |
| Rated lifting force (kN): | 100 | Rated feeding force (kN): | 50 |
| Supply Ability | 100 Set/Sets per Month |
| Packaging Details | Drilling rig naked, other accessories carton packaging | Port | Shanghai Port |

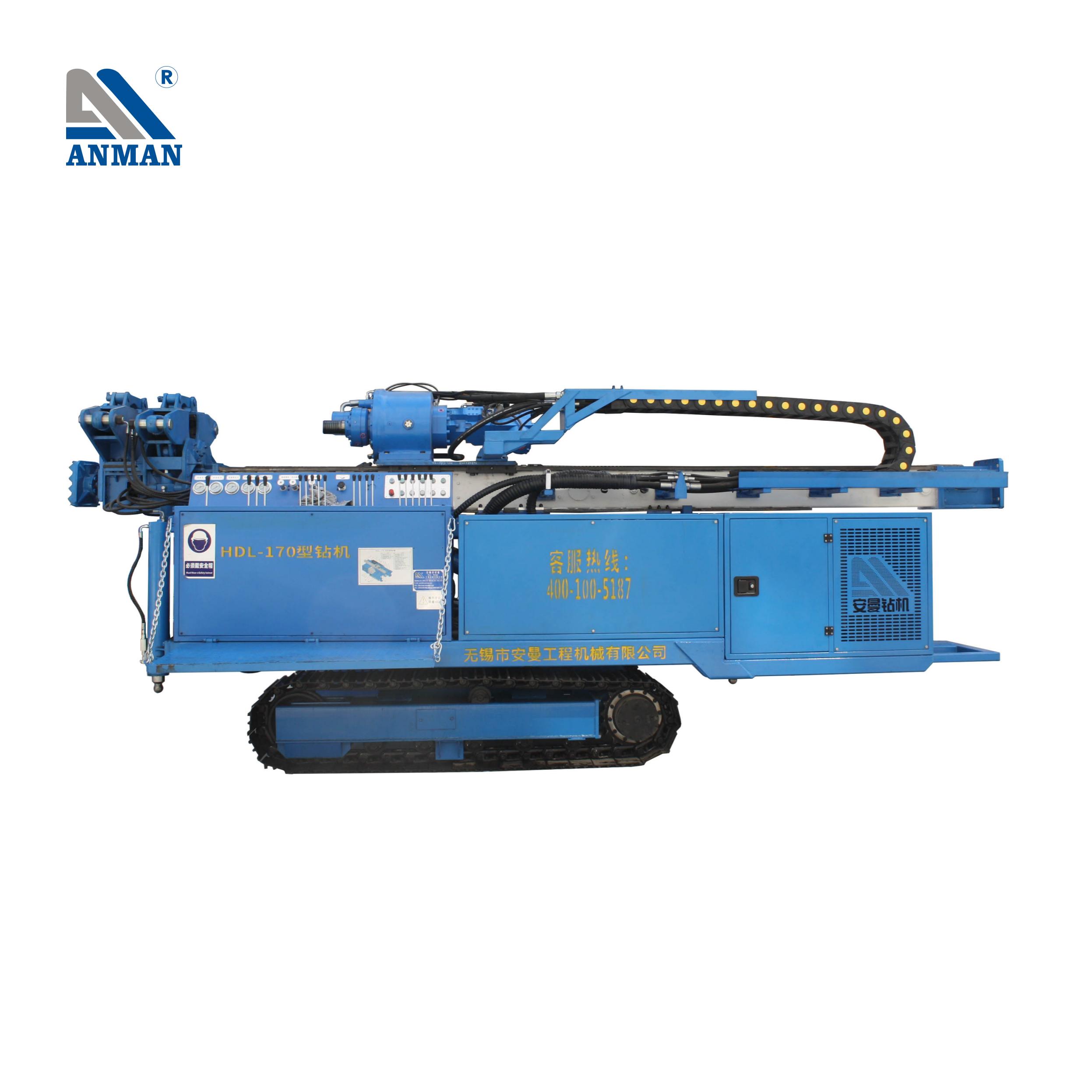

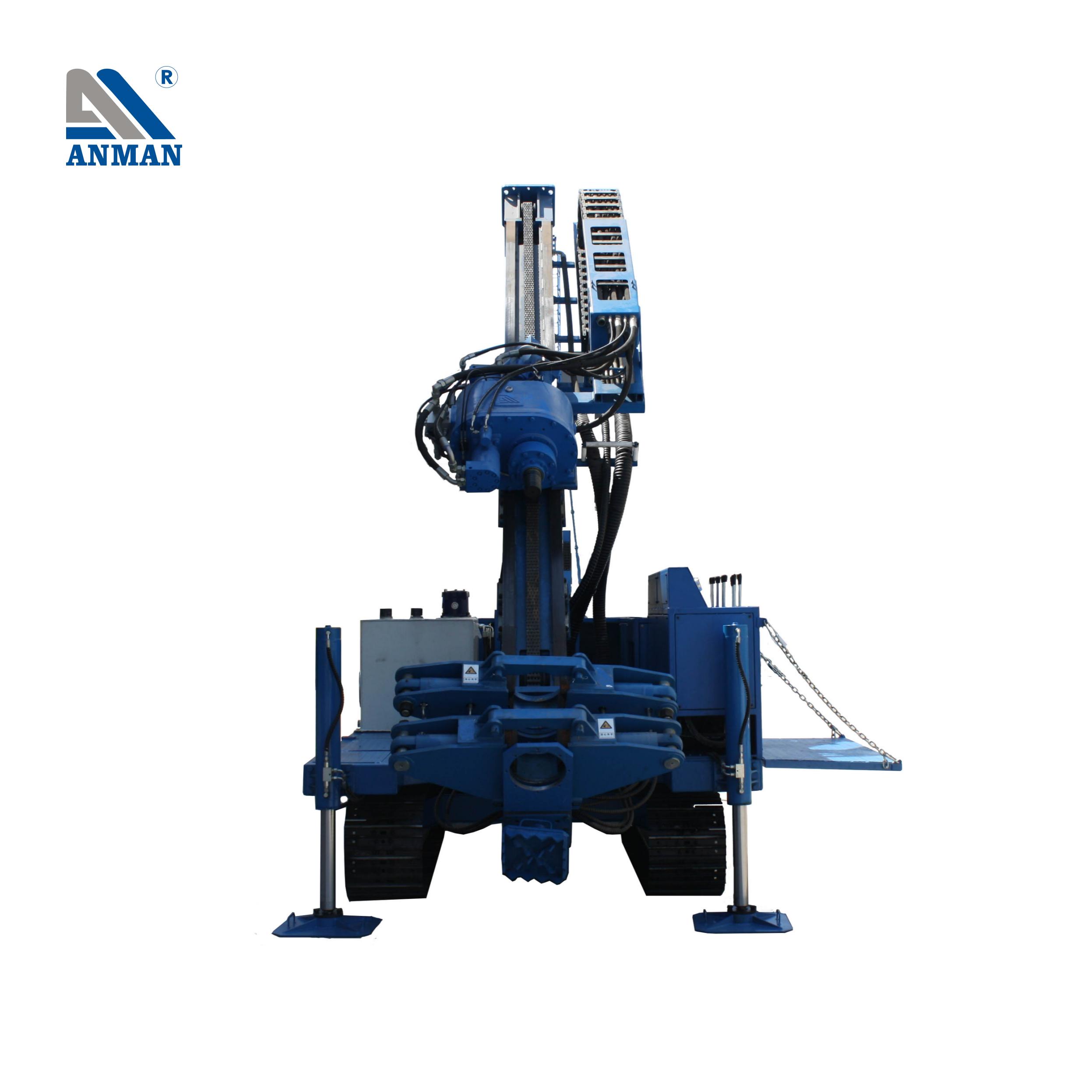

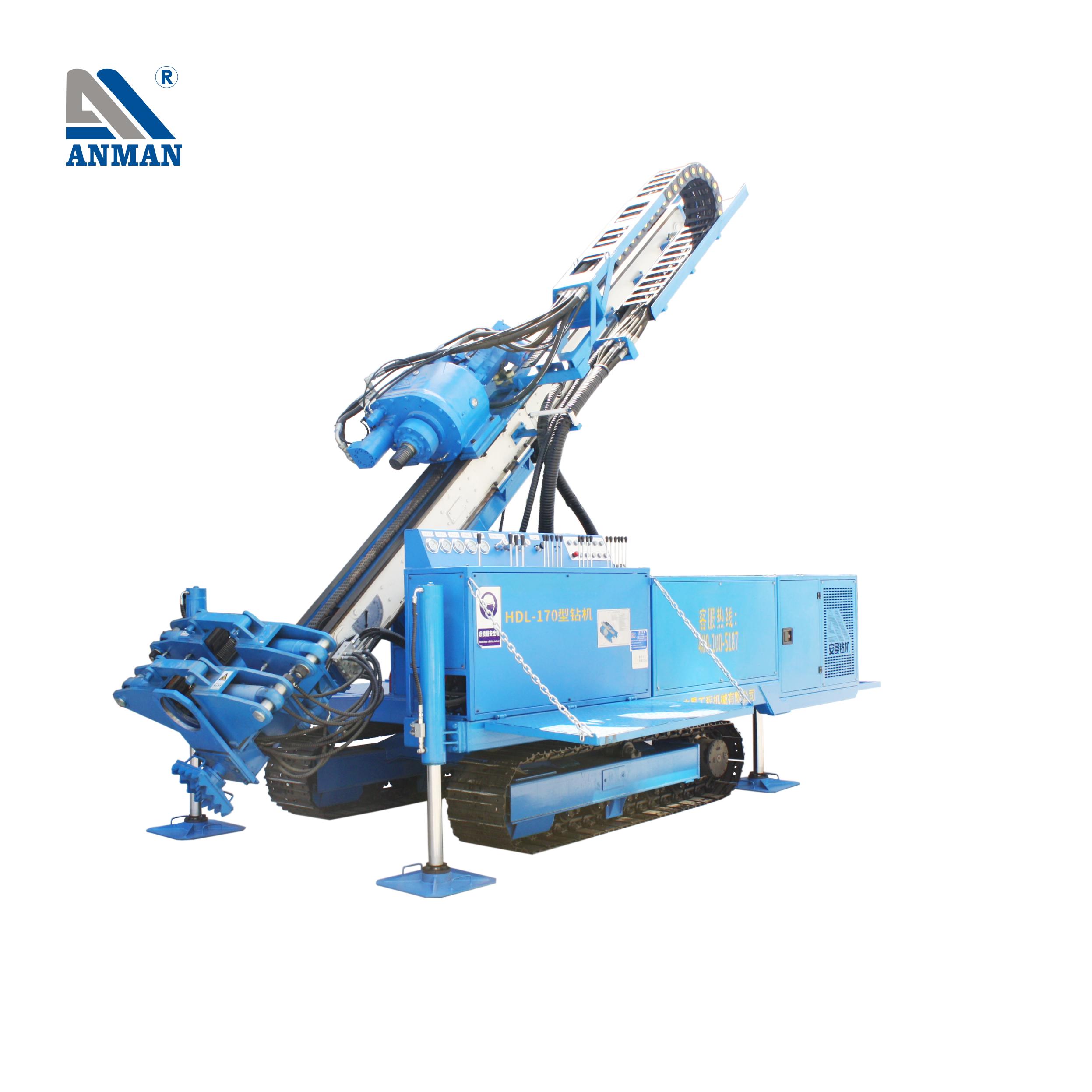

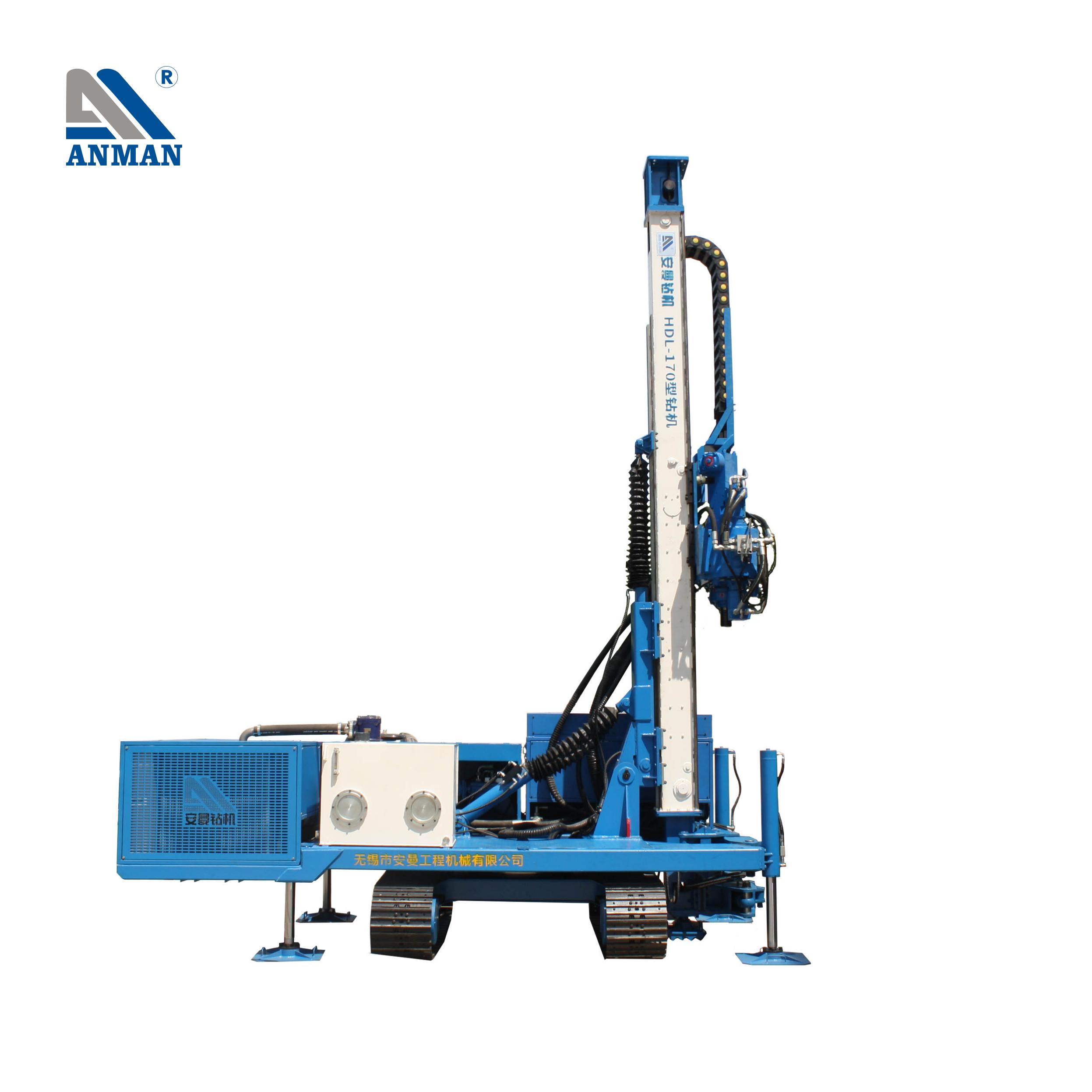

HDL-170
HDL series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex formation according to market request.
|
Model |
HDL-170 |
|
Hole diameter(mm) |
φ150~φ250 |
|
Hole depth(m) |
140~180 |
|
Hole angle(°) |
0~90 |
|
Rod diameter(mm) |
φ73,φ89,φ133,φ146,φ168,φ194,φ219 |
|
Gripper diameter(mm) |
φ73~φ250 |
|
Rated output max torque(N.m) |
10800 |
|
Rated rotary max speed(r/min) |
235 |
|
Lifting speed of rotary head(m/min) |
25 |
|
Feeding speed of rotary head(m/min) |
50 |
|
Impact power of rotary head(N.m) |
650 |
|
Impact frequency of rotary head(b/min) |
2300 |
|
Rated lifting force(kN) |
100 |
|
Rated feeding force(kN) |
50 |
|
Feeding stroke(mm) |
3400 |
|
Sliding stroke(mm) |
1200 |
|
Input power(Engine)(kW) |
55+37 |
|
Transport Dimension(L*W*H)(mm) |
6400*2300*2400 |
|
Vertical Working Dimension (L*W*H)(mm) |
4700*3100*6400 |
|
Weight(kg) |
8200 |
|
Climbing angle(°) |
20 |
|
Walking speed(m/h) |
800 |
