AMP-600 Electric high-pressure grouting pump
AMP-600 Electric high-pressure grouting pump
.PNG)
.png?x-oss-process=image/resize,w_100/quality,q_100)
.PNG?x-oss-process=image/resize,w_100/quality,q_100)
.PNG?x-oss-process=image/resize,w_100/quality,q_100)
.PNG?x-oss-process=image/resize,w_100/quality,q_100)
.PNG?x-oss-process=image/resize,w_100/quality,q_100)
.PNG?x-oss-process=image/resize,w_100/quality,q_100)
2. The main parts of the equipment are made of the best quality steel and heat treatment process.

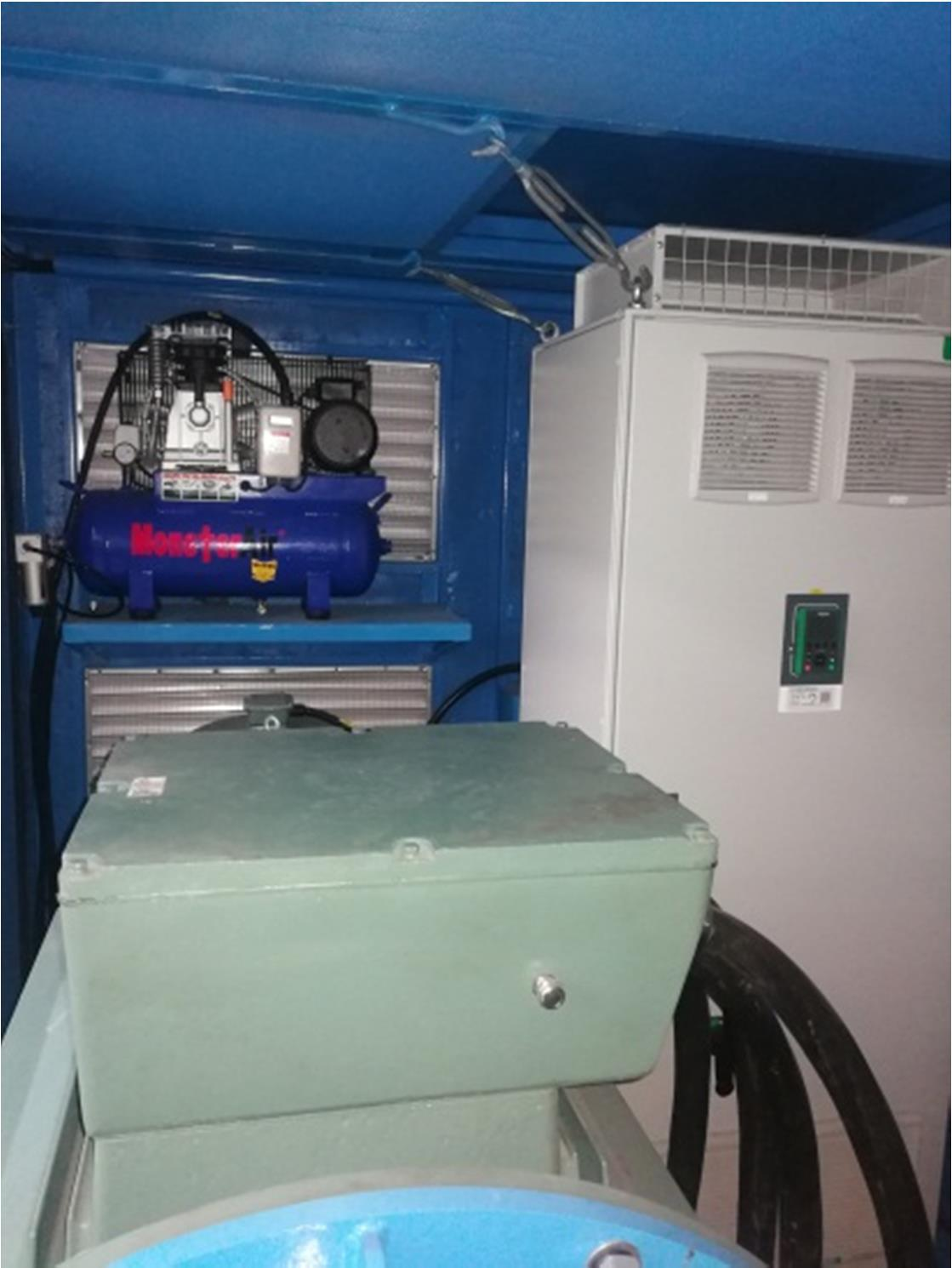

3. The equipment adopts imported ZF gearbox with 8 speeds. Imported Schneider frequency converter is selected.
4. Pressure, flow rate, rotational speed real-time display, data can be stored, printed, remote transmission.

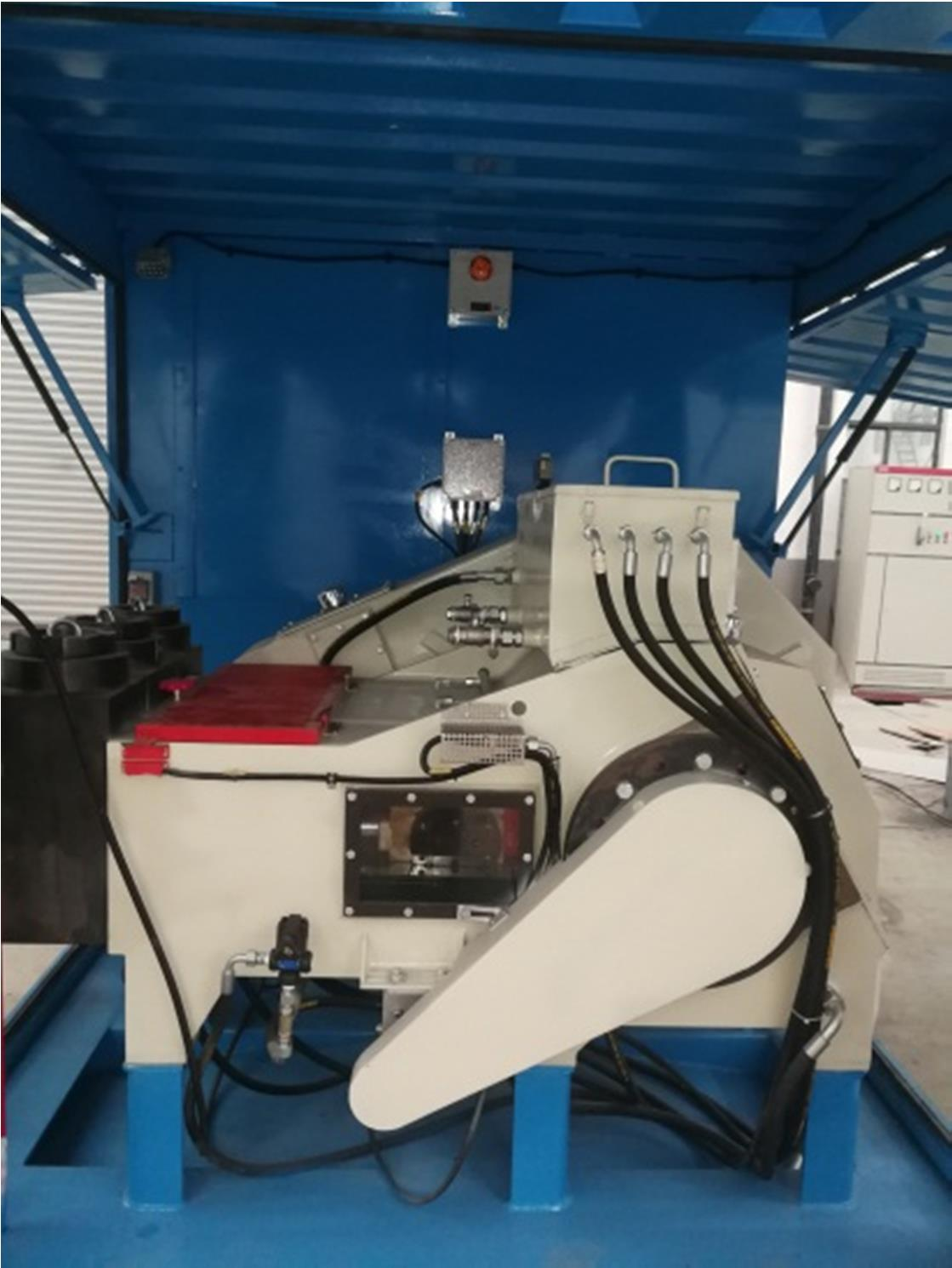

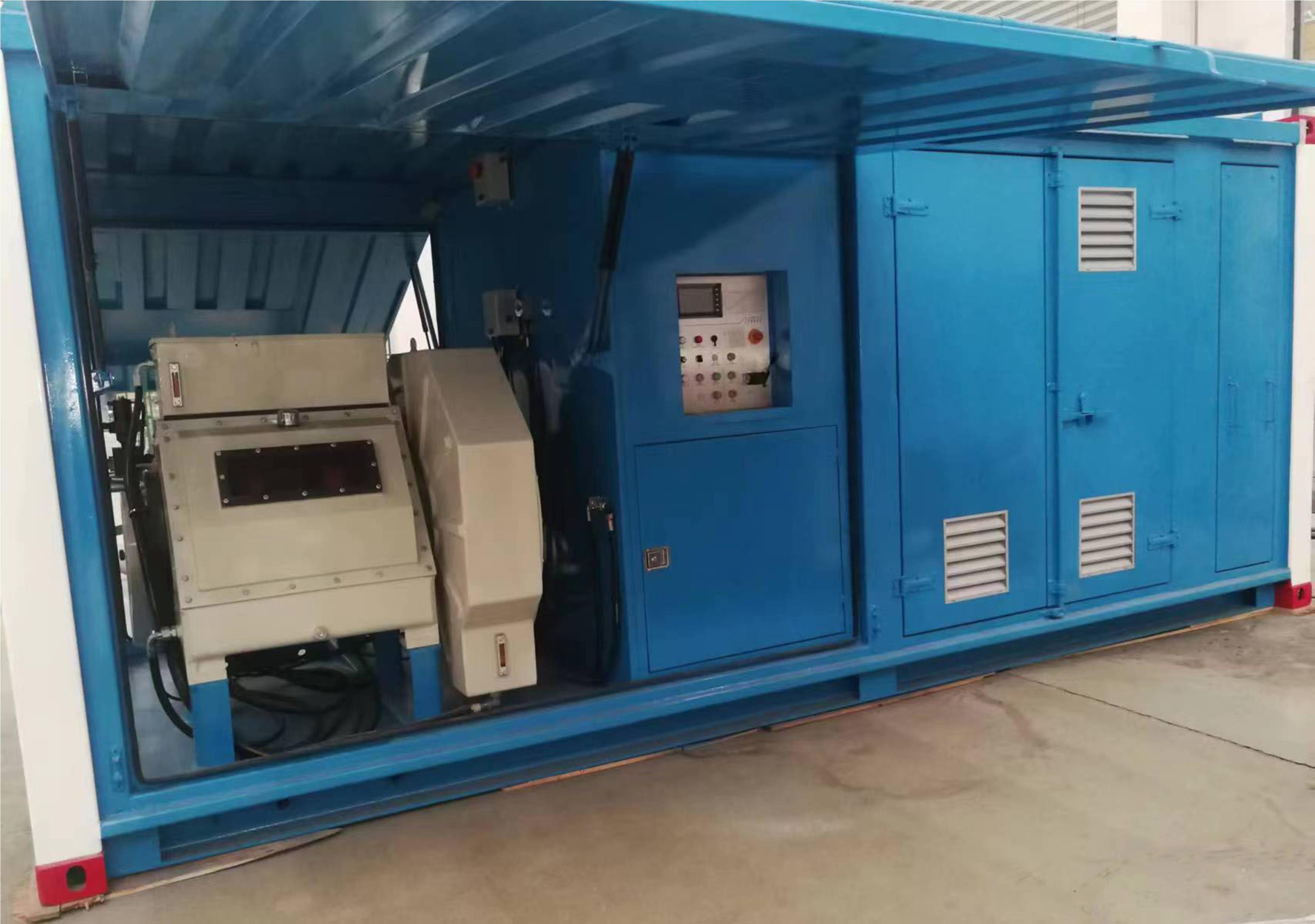

5. The equipment consists of two main units: the drive unit and the piston pump unit, and both units are located in a Low noise level in a container with silencing facilities. Easy to lift, move and transport.
|
AMP-600 Electric high-pressure grouting pump technical parameters |
|
|
Container dimensions(L*W*H) |
6058*2438*2591 mm |
|
Container weight |
16500 kg |
|
Power input |
410 kW |
|
Max pressure |
49 MPa |
|
Max flow rate |
680 L/min |
|
Piston diameter |
Φ 4 1/2″/Φ 4 1/4″/Φ 4″ |
|
Stroke |
7″ |
|
Max stroke rate |
124 spm |
|
Suction diameter |
100 mm |
|
Output diameter |
Z2"-11.5 |
|

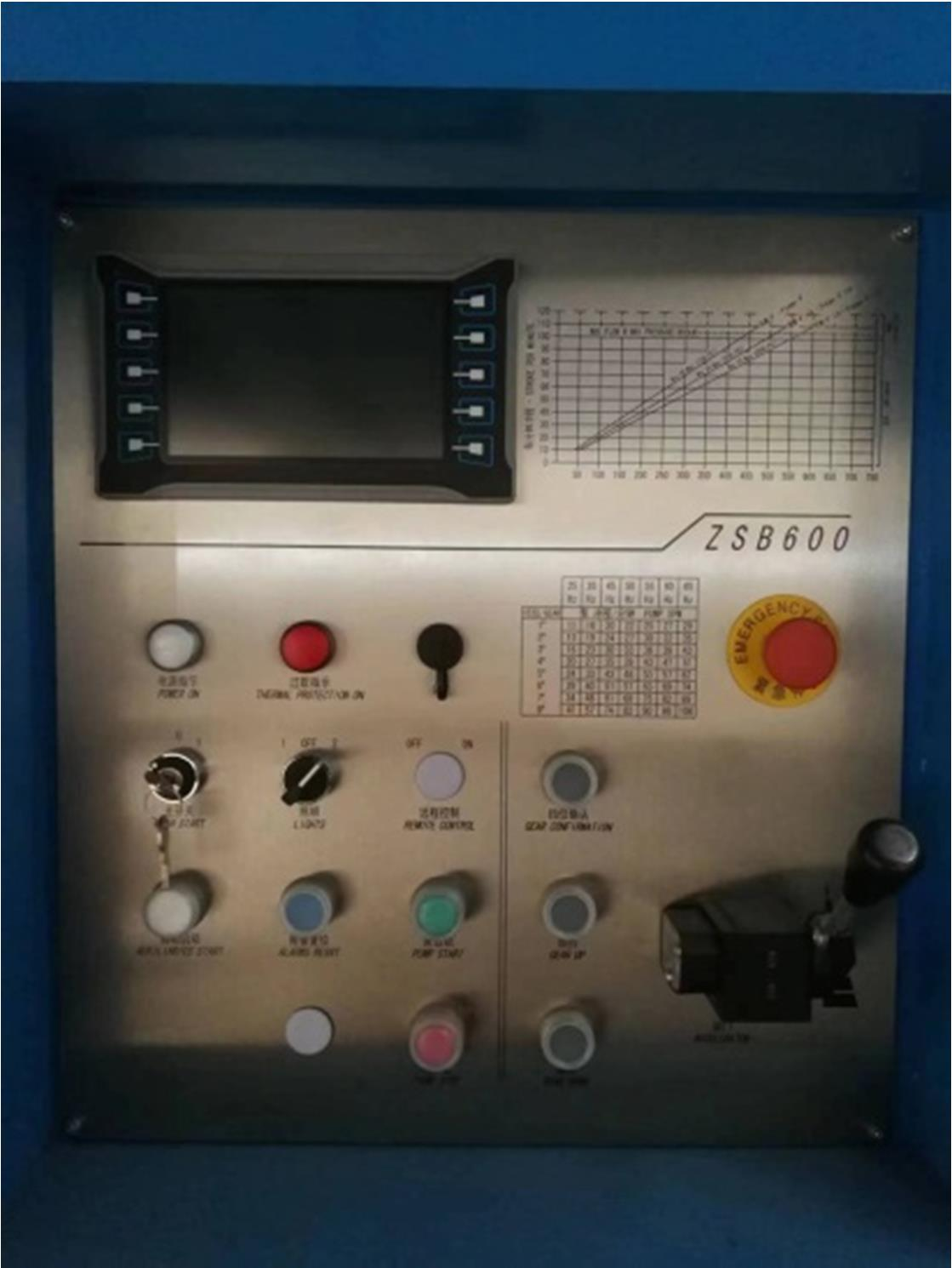

7″ PLC control panel |
√ |
|
Data recording kit |
√ |
An electric motor transmits power through an appropriate drive chain to a plunger pump that pressurizes a fluid (e.g., cement slurry) or water is pressurized and ejected underground. By controlling the speed of rotation, the pressure and injection flow rate can be varied so that the performance of the piston pump meets a wide range of conditions. the performance of the piston pump to meet the needs of a variety of different conditions.

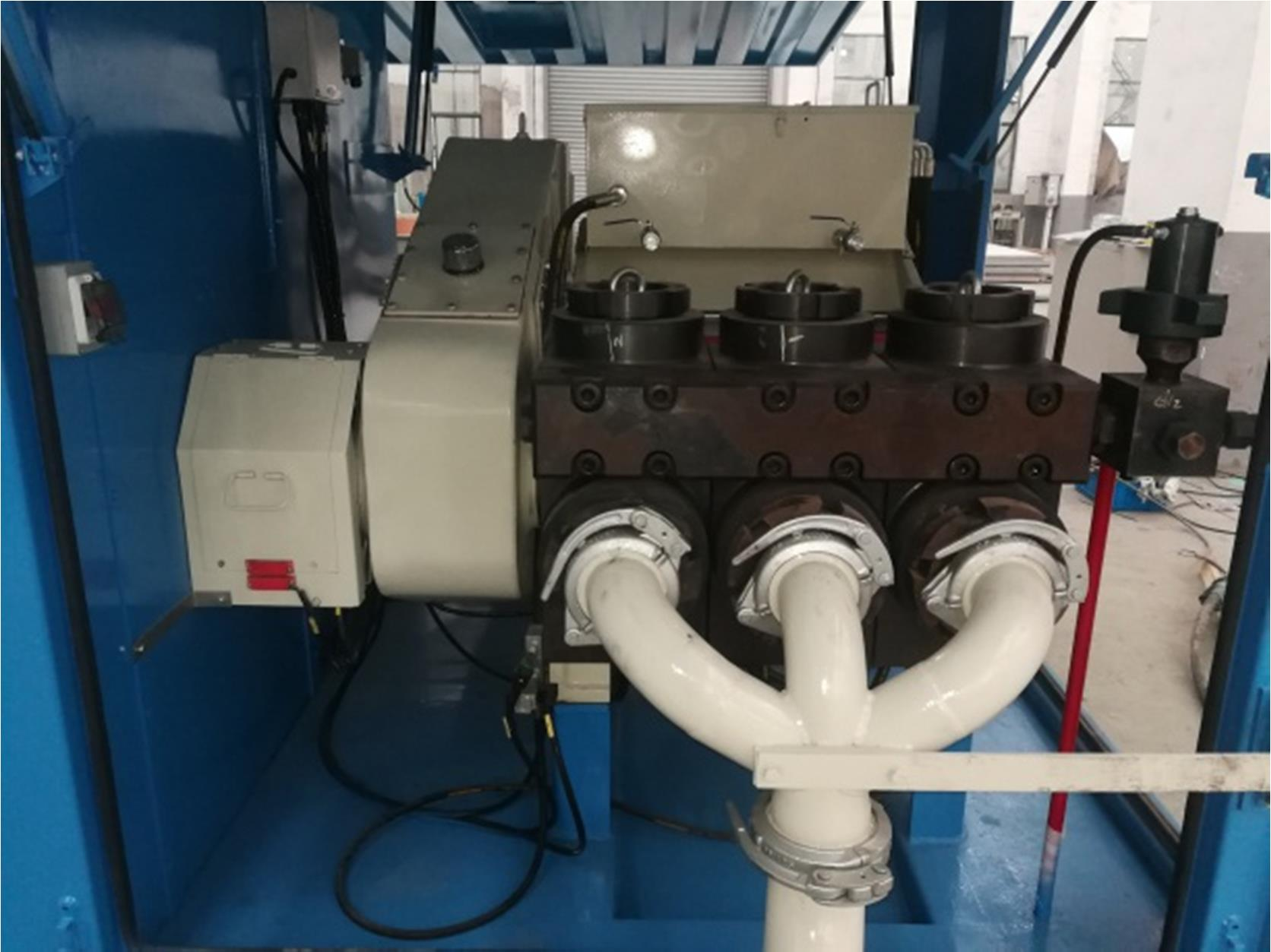

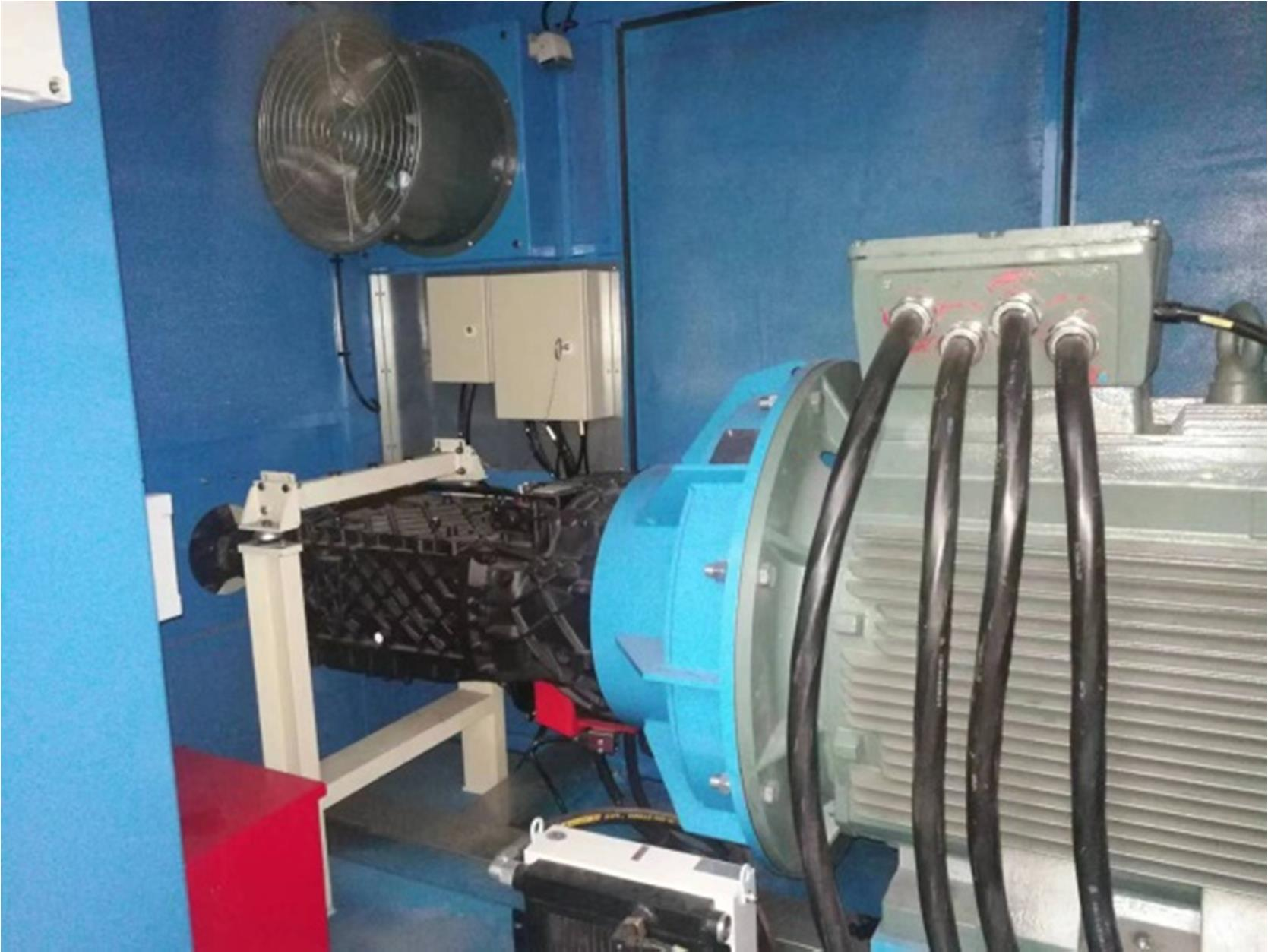

Electric motors → Clutch → Gearboxes → Universal Couplings → Sprocket parts → Crankshaft Components → Crosshead Components → Plunger parts → Pump head parts
