AM-6 high lifting crawler drilling rig
AM-6 high lifting crawler drilling rig
.jpg)
.png?x-oss-process=image/resize,w_100/quality,q_100)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)

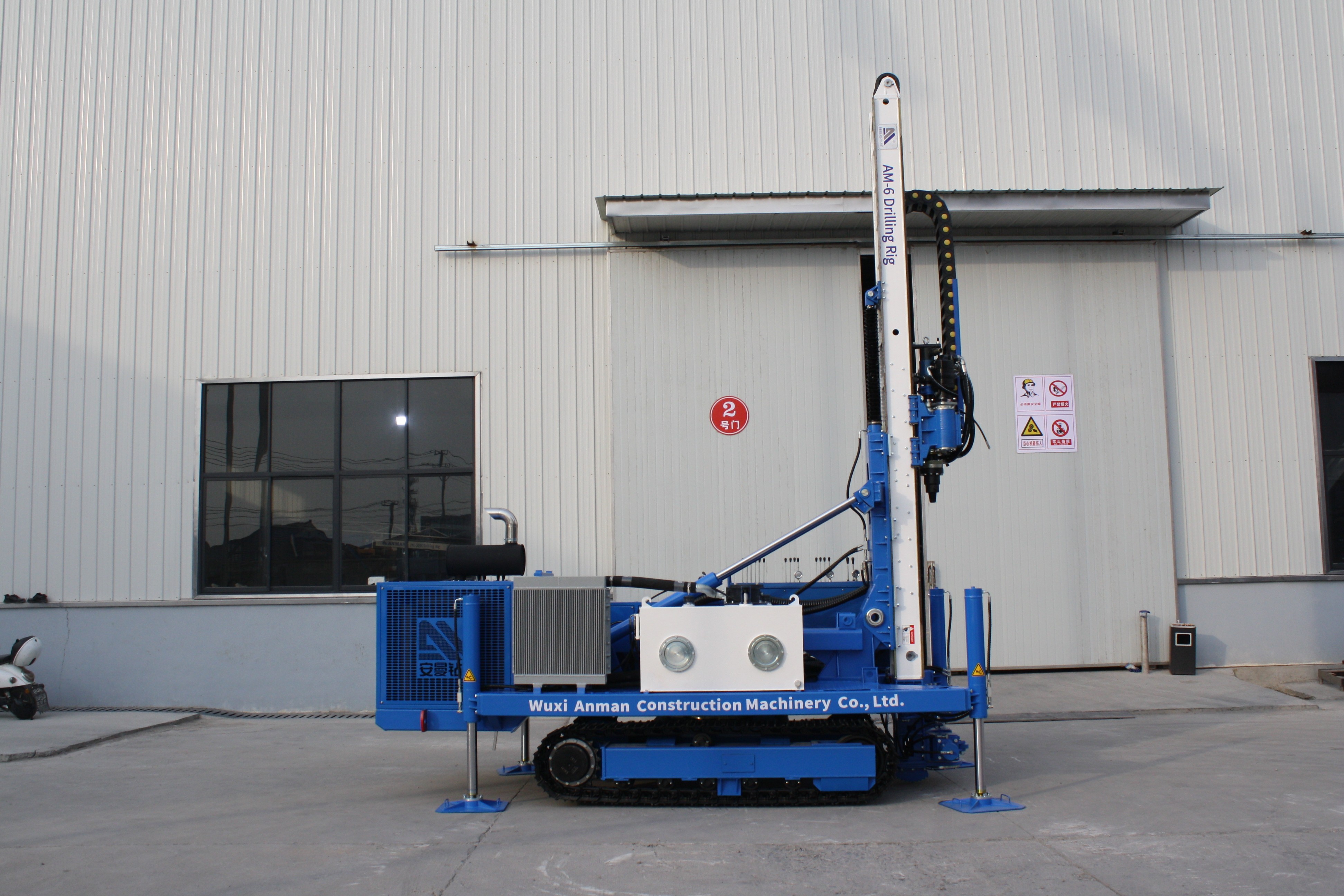

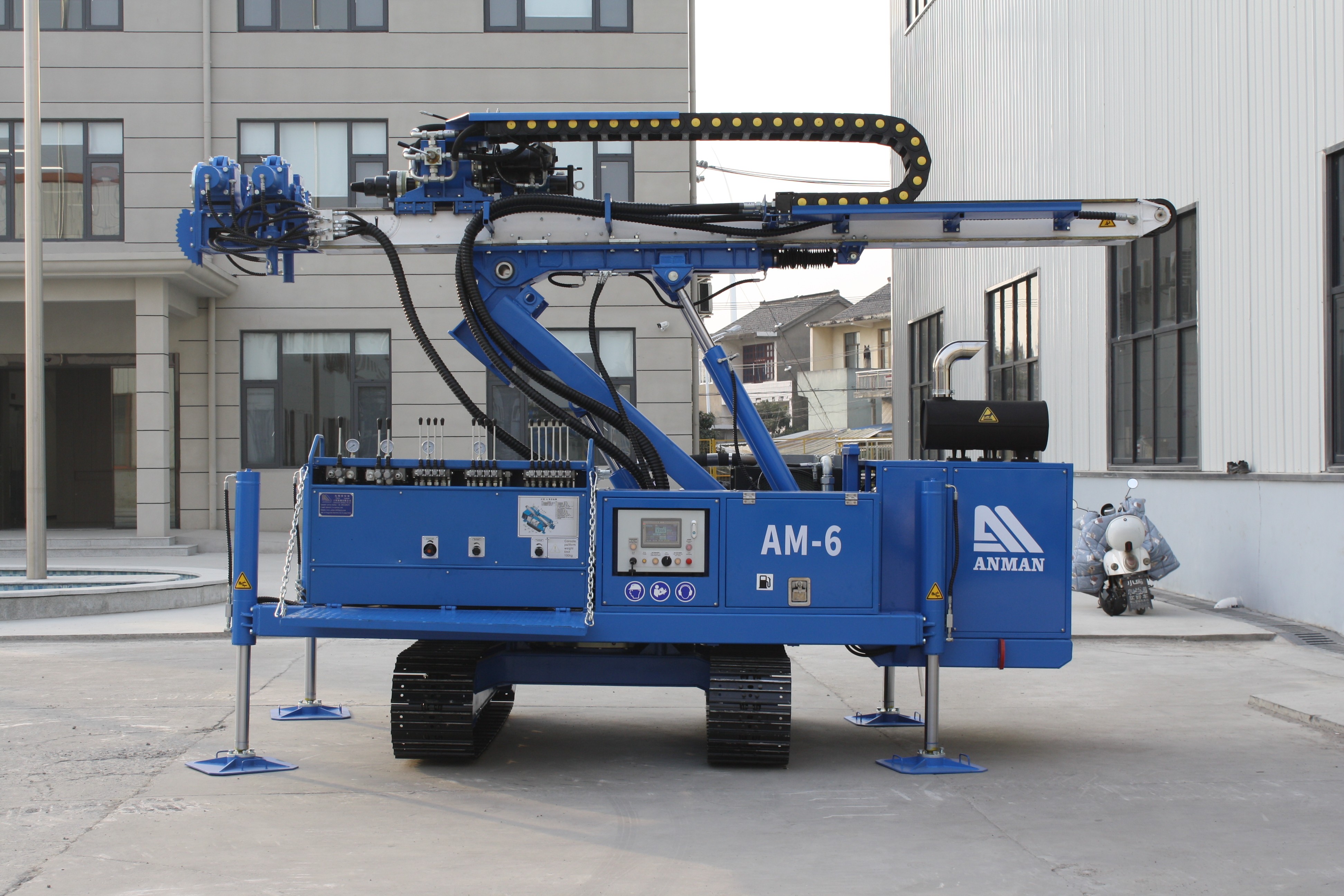

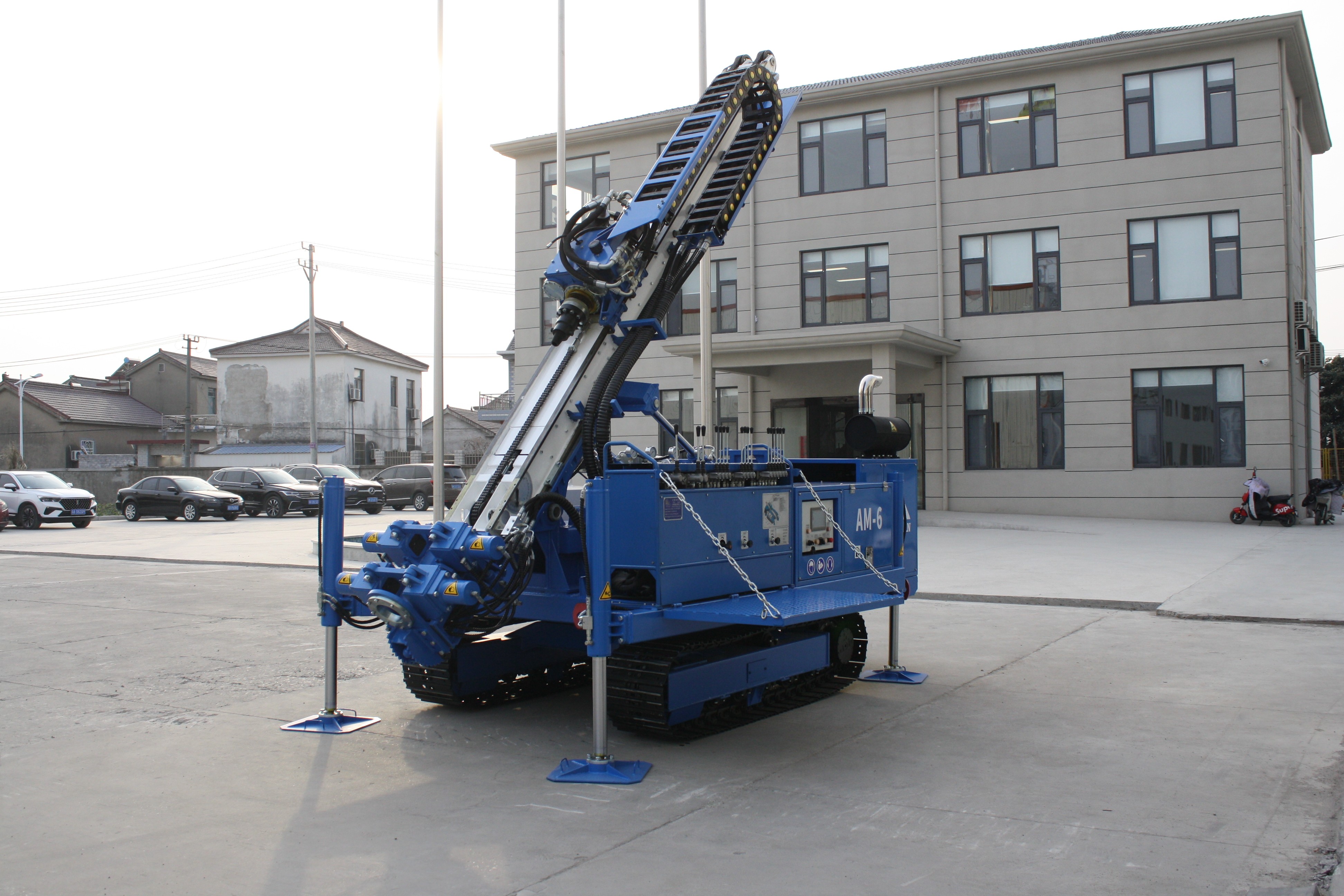

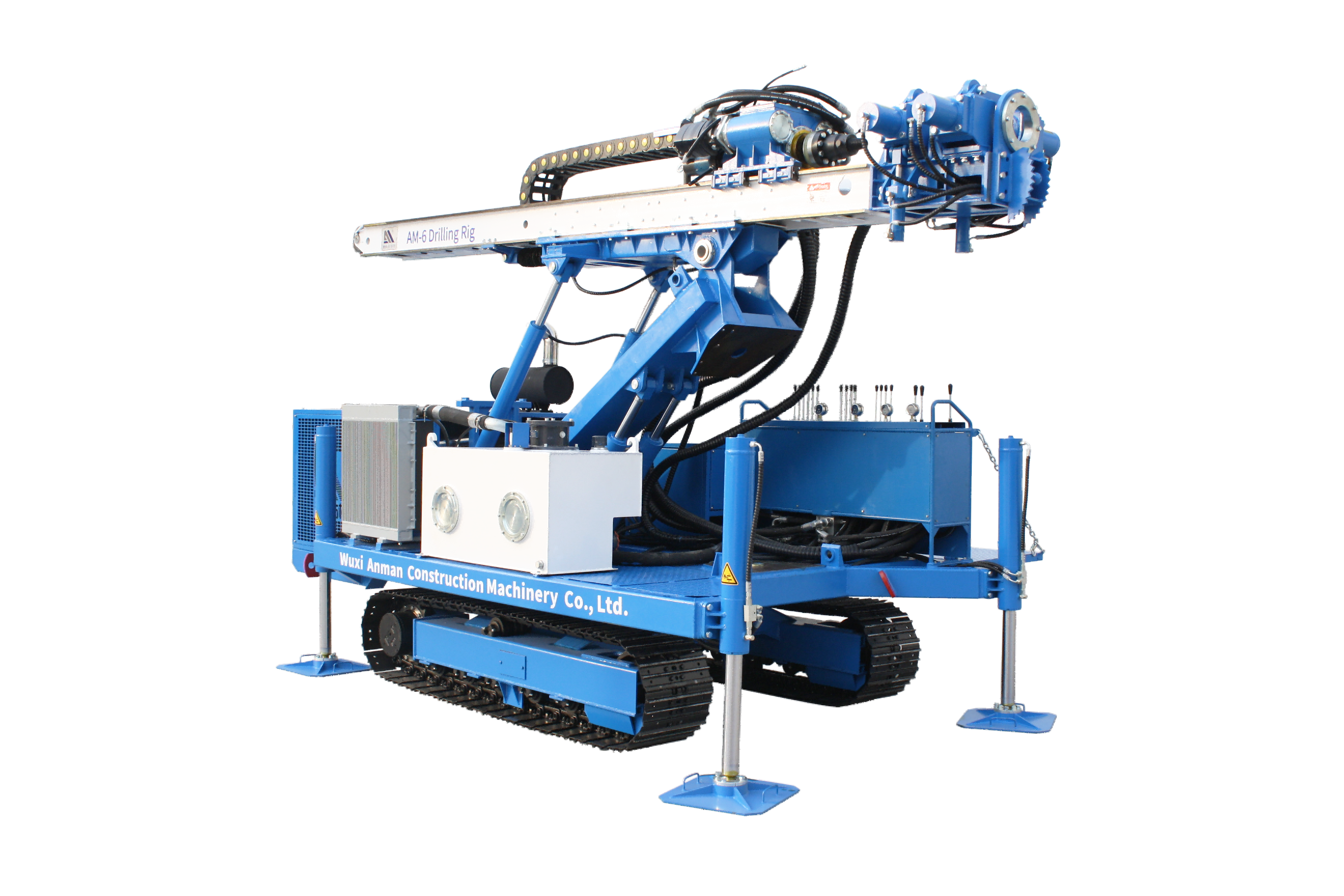

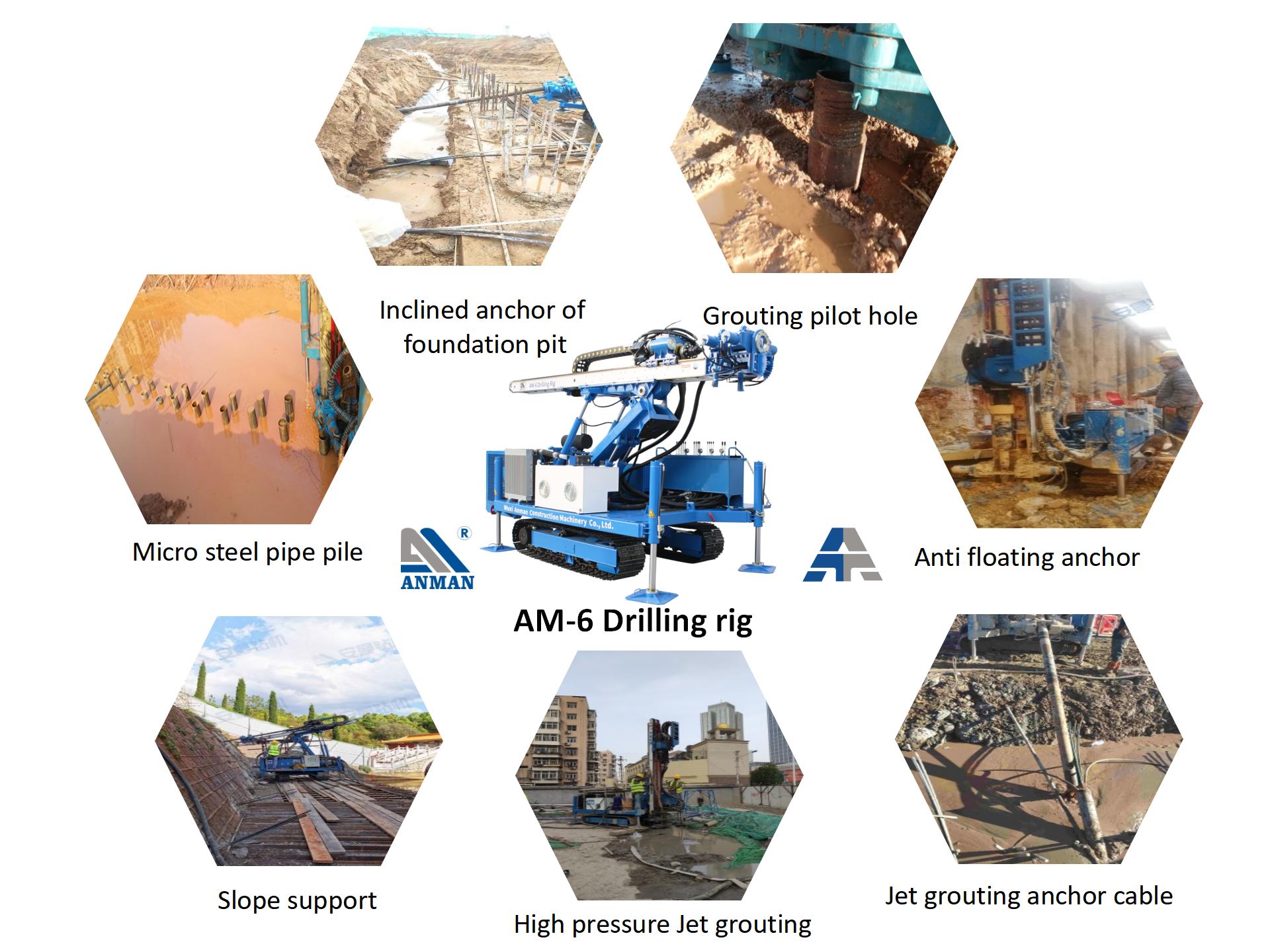

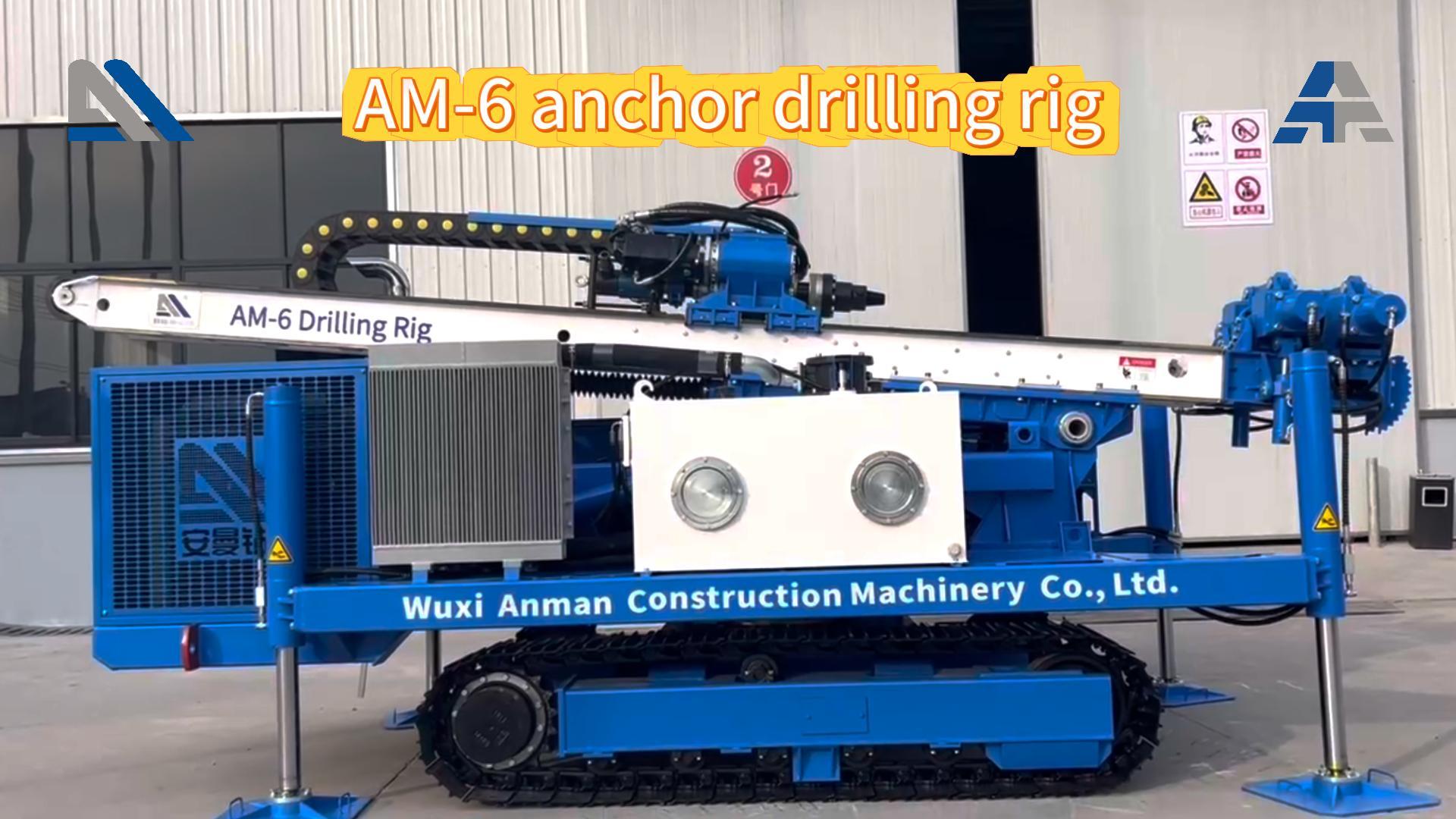

AM-6 High-Lifting Crawler Drilling Rig is a high efficiency drilling rig mainly for anchoring, jet-grouting and dewatering, which is well designed and produced by Wuxi Anman Construction Machinery Co., Ltd. This series of drilling rig is all-hydraulic operated drill in accordance with the construct requirements of subway, high-rise building, airport and the other deep foundation pit.
|
Parameters |
AM-6 |
|
Rod diameter |
Φ73~Φ168mn |
|
Hole angle |
-40-90° |
|
Max speed |
170r/min |
|
Max torque |
7500N·m |
|
Stroke of rotary head |
3400mm |
|
Stroke of slide flame |
900mm |
|
Lifting height |
3.2m |
|
Lifting force of rotary head |
70kN |
|
Lifting speed of rotary head |
0~5/18/26m/min |
|
Feeding force of rotary head |
36kN |
|
Feeding speed of rotary head |
10/30/50m/min |
|
Input power |
93kw Diesel |
|
Dimension(L*w*H) |
5400*2350*2200mm |
|
Weight |
6500kg |
